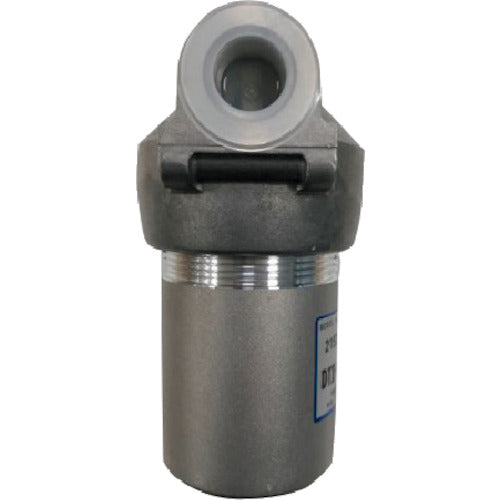

Yamashin Filter Line Filter DT-04 Series DT-04-A-10X-B-RC1/2 1 piece

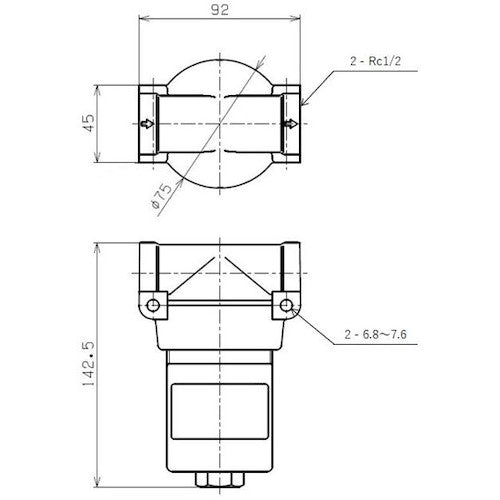

Catalog number: DT-04-A-10X-B-RC1/2 Features: ●A filter that can be installed in a hydraulic circuit with a filtration accuracy of 10 μm, ideal for maintaining the cleanliness of hydraulic oil in the circuit. ●Made of aluminum and lightweight. ●The piping connection port is a highly versatile RC1/2 screw specification. ●The valve set pressure is 0.15 MPa. Applications: ●For general mineral hydraulic oil. ●For removing dust from the circulation circuits of machine tools, industrial machinery, and hydraulic equipment for conveying. Specifications: ●Caliber: Rc1/2 ●Total length (mm): 142 ●Total width (mm): 92.2 ●Standard flow rate (L/min): 20 ●Maximum operating pressure (MPa): 7.0 ●Valve set pressure (MPa): 0.15 ●Filtration accuracy: Nominal 10 μm ●Piping port diameter: Rc1/2 ●Maximum operating pressure: 7 MPa ●Maximum flow rate: 22 L/min Material/Finish: ●Aluminum Note: ●The element is replaceable. ●Loosen the hexagonal part of the case with a wrench, remove the case, and replace the internal element.
