Yamashin Filter Line Filter SP-04 Series SP-04-10X-A-RC1/2 1 pc

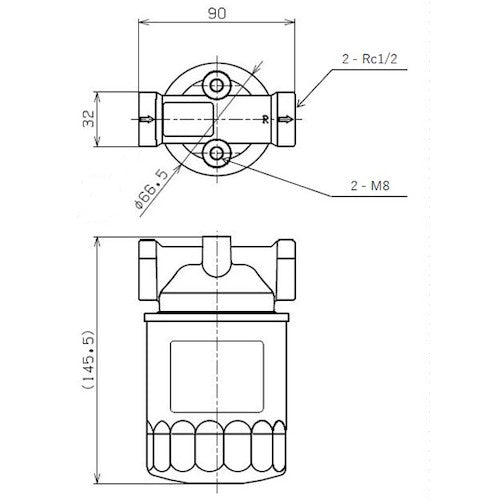

Catalog number: SP-04-10X-A-RC1/2 Features: ●A filter that can be installed in a hydraulic circuit with a filtration accuracy of 10 μm, ideal for maintaining the cleanliness of hydraulic oil in the circuit. ●The cartridge type makes maintenance during replacement easy. ●It can be installed just before the hydraulic oil tank and used as a return filter. Applications: ●As a filter for general hydraulic oil. ●For removing dust from the circulation circuits of machine tools, industrial machinery, and hydraulic equipment for conveying. ●For return filters. Specifications: ●Aperture: Rc1/2 ●Total length (mm): 145.5 ●Total width (mm): 90.0 ●Standard flow rate (L/min): 30 ●Maximum operating pressure (MPa): 0.7 ●Valve set pressure (MPa): 0.1 ●Filtration accuracy: 10 μm ●With relief valve ●Pipe port diameter: Rc1/2 ●Maximum flow rate: 30 L/min Material/Finish: ●Aluminum ●Steel plate Note: ●The cartridge is replaceable. ●The cartridges are plated and painted, but if rust occurs it may cause oil leakage, so please inspect and replace them regularly.
