Yamashin Filter Line Filter SP-04 Series SP-04-10X-B-RC1/2 1 pc

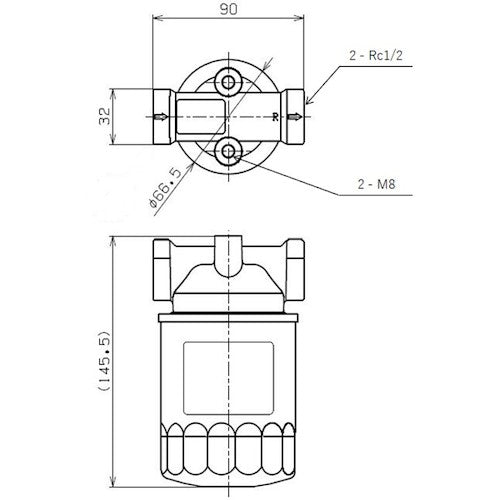

Catalog number: SP-04-10X-B-RC1/2 Features: ●A filter that can be installed in a hydraulic circuit with a nominal filtration accuracy of 10 μm, ideal for maintaining the cleanliness of hydraulic oil in the circuit. ●The filter cartridge type makes maintenance during replacement easy. ●The piping connection port is a highly versatile Rc1/2 thread specification. ●It can also be used as a return filter when installed just before the hydraulic oil tank. Applications: ●For general mineral hydraulic oil. ●For removing dust from the circulation circuits of machine tools, industrial machinery, and hydraulic equipment for transport. ●For return filters. Specifications: ●Aperture: Rc1/2 ●Total length (mm): 145.5 ●Total width (mm): 90.0 ●Standard flow rate (L/min): 30 ●Maximum operating pressure (MPa): 0.7 ●Valve set pressure (MPa): 0.15 ●Filtration accuracy: Nominal 10μm ●Pipe port diameter: Rc1/2 ●Maximum operating pressure: 0.7MPa ●Maximum flow rate: 30L/min Material/Finish: ●Aluminum ●Steel plate Caution: ●Replaceable cartridge. ●The cartridge is plated and painted, but if rust occurs, it may cause oil leakage, so please check and replace it regularly.
