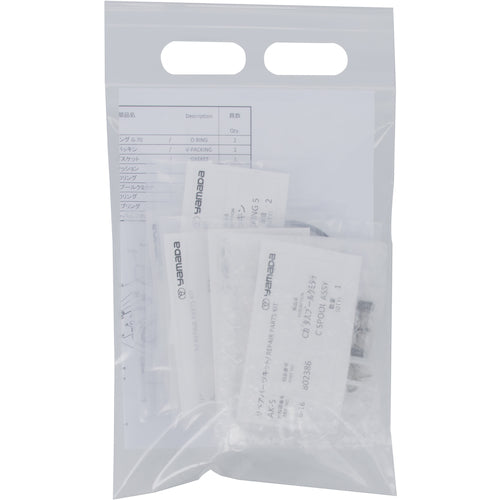

Yamada Air Switching Unit Repair Parts Kit AK-10 AK10 1 set

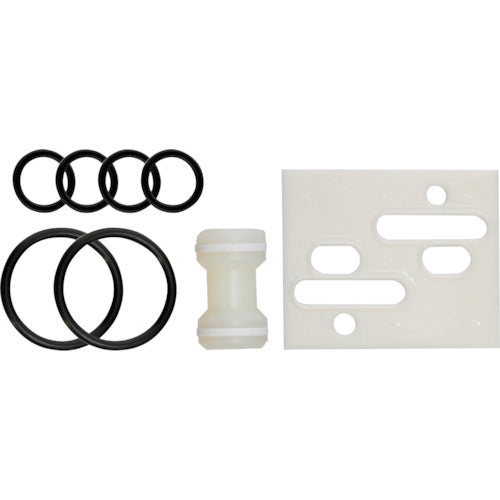

Catalog number: AK10 Features: ●Repair parts kit for the air motor of the YAMADA air-driven diaphragm pump DP-10 series. ●Comes with general consumable parts, making it easy to maintain the diaphragm pump you are using. Applications: ●For YAMADA DP-10 series air motors. ●For repairing DP-10 series air motors. Specifications: ● Pump bore: 3/8 ● Pump air pressure range (MPa): 0.2-0.7 ● Nominal bore: 10mm ● Maximum pressure (bar): 7 ● Maximum discharge pressure (MPa): 0.7 ● Maximum discharge volume (L/h): 1200 ● Maximum flow rate (L/min): 20 ● Connection bore (mm): 6.5 ● Noise level (dB): 84 ● Discharge port bore: 3/8 ● Discharge volume (L/min): 20 ● Discharge volume (ml/min): 20000 ● Transfer temperature (℃): 0-60 ● Specific gravity of liquid that can be used: Viscosity (mPa・s): 500 Material/Finish: ● Air motor body: Aluminum alloy (ADC12) Set contents/Accessories: ● 684284 Gasket (4 pieces), 801404 Spool (1 piece), 640131 O-ring (2 pieces), 771358 Gasket (1 piece) ● Parts exploded view, parts list Note: Applicable models: YAMADA DP-10 series
