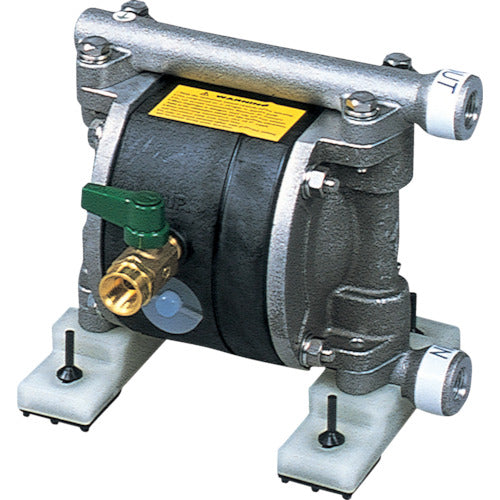

Yamada Diaphragm Pump NDP-5FAT NDP-5FAT 1 unit

Catalog number: NDP-5FAT Features: ● Safely transports flammable liquids. ● By installing a valve at the outlet of the material piping, you can start, stop, and adjust the flow rate just by opening and closing the valve. ● Self-priming, no need for priming water, and can efficiently pump out liquids containing air. ● There are no sliding parts (shaft seals) in the pump's liquid contact area, and it has excellent slurry resistance and no risk of liquid leakage due to seal wear, making it ideal for slurry liquids. ● The maximum discharge pressure is approximately 0.7 MPa, making it possible to transport to high or distant locations. ● It can be adjusted by adjusting the air regulator. ● Since it is driven only by compressed air from the compressor, no special explosion-proof measures are required. ● Since there is no heat generation due to overload, it can be used safely without risk even in explosion-proof areas. Applications: ● Transporting liquid materials containing abrasive elements. ● Pumping liquid materials at high pressure. ● Adjusting the discharge pressure. ● Adjusting the valve flow rate at the site of use and stopping it first. Specifications: ● Discharge volume (L/min): 0.5-5.0 ● Discharge port diameter: Rc1/4 ● Pump port diameter: 1/4 inch (8A) ● Nominal port diameter: 1/4 (8mm) ● Pump air pressure range (MPa): 0.2-0.7 ● Maximum flow rate (L/min): 11 ● Overall width (mm): 155 ● Overall length (mm): 149 ● Overall height (mm): 149 ● Maximum discharge pressure (MPa): 0.7 ● Noise level (dB): 81
