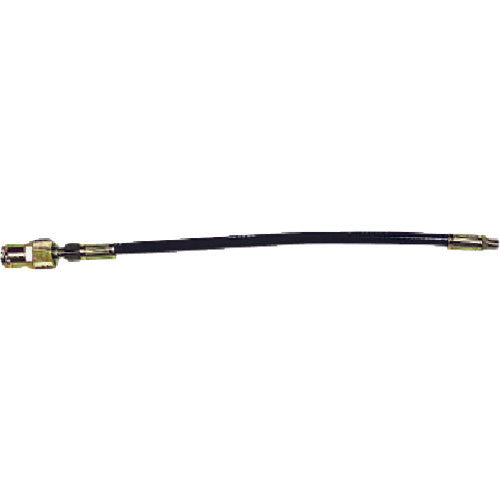

Yamada Micro Hose for Pin Type Nipple 1m SPK-1C-1M 1 pc

Catalog number: SPK-1C-1M Features: ●Ideal for when it is difficult to supply oil using a pipe-type nozzle. ●Can be connected to a grease gun. Applications: ●For injecting grease into pin-type nipples. ●For grease pumps. ●For supplying grease to areas that require flexible access via a hose. ●For supplying grease to areas that require access via a 1m hose. ●For supplying grease to narrow areas. Specifications: ● Total length (mm): 1069 ● Compatible models: YAMADA grease gun series ● Nozzle connection thread: R1/8 ● Type: For pin type fittings ● Maximum operating pressure (MPa): 21 ● Connection thread diameter: R1/8 x 1M ● For pin type fittings ● Total length (mm): 1069 Material/Finish: ● Inner surface of hose: Polyamide (PA12) ● Outer surface of hose: Urethane rubber (U) ● Cap (main): Free-cutting steel material (SUM22) ● Packing (main): Nitrile rubber (NBR) Set contents/Accessories: ● 1m micro hose nozzle ● Cap for button head nipple Caution: ● Use Yamada micro hoses at 21MPa or less. ● Minimum bending radius: If the hose is bent to less than 35mm, it may break. ● It is necessary to select a hose that is suitable for the type of liquid to be supplied, the shape of the supply destination, pressure resistance, and other specifications.
