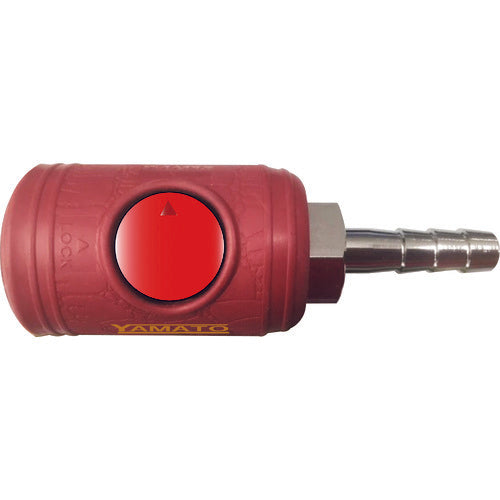

Yamato Metal Coupling Button Type Coupling Socket BLB22-SH-P Mating Mounting Size 1/4 Hose Nozzle BLB22-SH-P 1 Piece

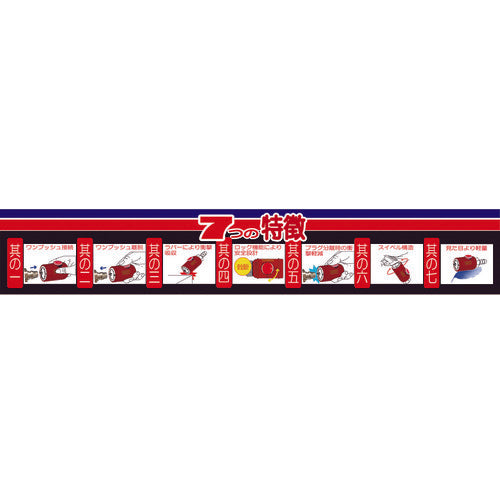

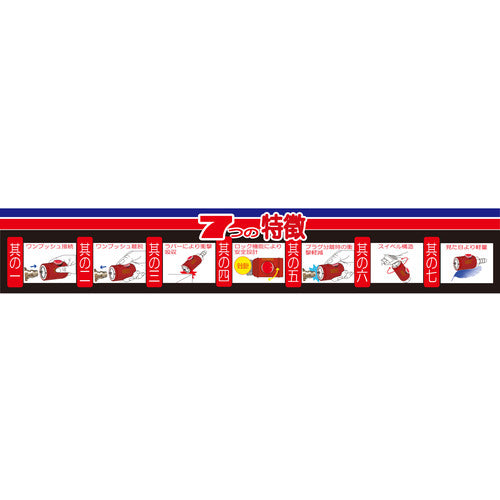

Catalogue number: BLB22-SH-P Features: *Easy to connect, just insert the plug. *Easy to disconnect, just press the button. *Safety due to the locking function with the button knob. *Rubber case prevents damage to the object and absorbs shock. *Reduces recoil of the plug when discharging air from the piping during disconnection. *Smooth swivel operation on the plug side. *Maximum weight reduction. Specifications: ●Pressure resistance (MPa): 1.5 ●Mating hose size (mm): 1/4 ●Usable fluid: Air ●Operating temperature range (℃): -20 to 80 ●Maximum operating pressure (MPa): 1.0 ●Mating hose size (inch): 1/4 ●Mating mounting size: 1/4 hose port ●Cover color: Red ●Mounting size: 1/4 ●Compatible coupler: Type 20 ●Color: Red Material/Finish: ●Main body: Steel, hard resin ●Main body cover: Chloroprene rubber (CR) ●Sealing rubber: Nitrile rubber (NBR) Caution: ●May not be suitable for air tools that require high flow rates.
