Yamato Metal Coupling Button Type Coupling Socket BLB23-SN-P Mating Mounting Size Φ8.5 x Φ12.5 Urethane Hose BLB23-SN-P 1 Piece

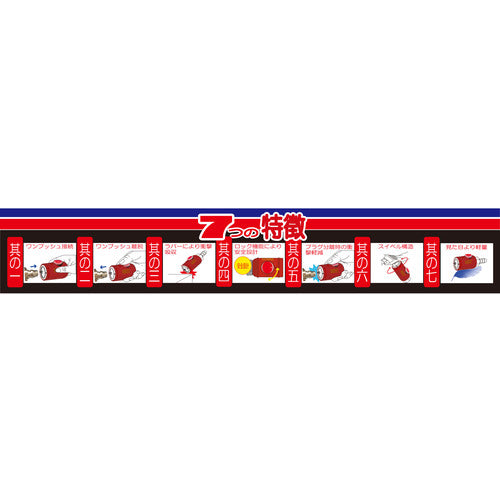

Catalogue number: BLB23-SN-P Features: *Easy to connect, just insert the plug. *Easy to disconnect, just press the button. *Safety due to the locking function with the button knob. *Rubber case prevents damage to the object and absorbs shock. *Reduces recoil of the plug when discharging air from the piping during disconnection. *Smooth swivel operation on the plug side. *Maximum weight reduction. Specifications: ●Pressure resistance (MPa): 1.5 ●Mating hose size (mm): 8.5 x 12.5 ●Usable fluid: Air ●Operating temperature range (℃): -20 to 80 ●Maximum operating pressure (MPa): 1.0 ●Mating hose size (inches): φ8.5 x φ12.5 urethane hose ●Mating mounting size: φ8.5 x φ12.5 urethane hose ●Cover color: Blue ●Mounting size: 8.5 x 12.5 ●Compatible coupler: Type 20 ●Color: Blue Material/Finish: ●Main body: Steel, hard resin ●Main body cover: Chloroprene rubber (CR) ●Sealing rubber: Nitrile rubber (NBR) Caution: ●May not be suitable for air tools that require high flow rates.
