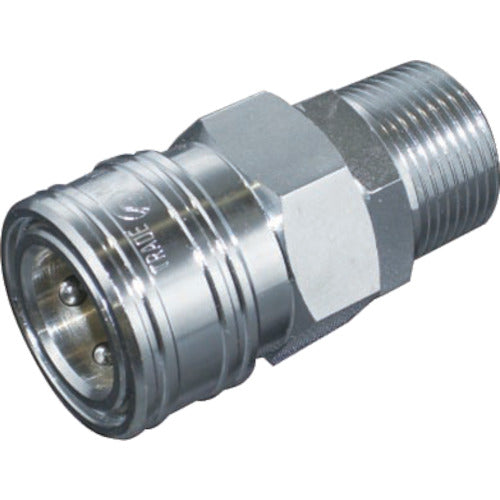

Yamato Metal Coupling BLY Series Coupling Socket (for female thread installation) Mating installation size Rc1 BLY48-SM 1 pc

Catalog number: BLY48-SM Features: ● Important components are hardened to improve strength, and have excellent abrasion resistance and durability. Applications: ● For air piping in factories and hose connections for air tools. Specifications: ● Pressure resistance (MPa): 2.0 ● Fluid used: Air ● Operating temperature range (℃): -20 to 80 ● Maximum operating pressure (MPa): 1.5 ● Counterpart mounting size: Rc1 ● Size: R1 male thread ● Operating temperature range: -20℃ to 80℃ ● Maximum operating pressure: 1.5MPa Materials/Finish: ● Body: Steel (chrome plated) ● Sealing rubber: Nitrile rubber (NBR)
