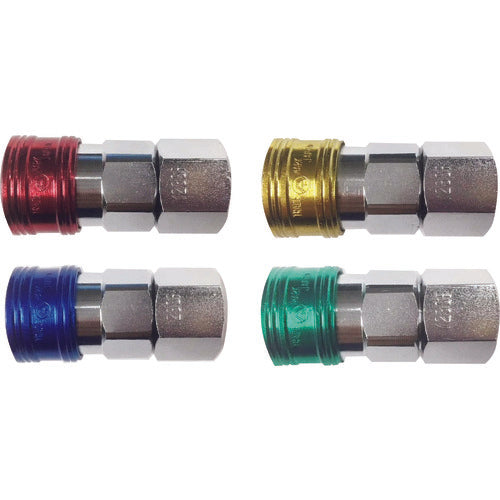

Yamato Metal Coupling BLY-C Series Color Coupling Socket (For Threaded Installation) Yellow 3 Pieces Mating Installation Size R1 BLY48-SF-Y 1 Piece

Catalog number: BLY48-SF-Y Features: ●The industry's first color coupling. Applications: ●Suitable for color-coding piping lines. Specifications: ●Pressure resistance (MPa): 2.0 ●Fluid used: Air ●Maximum operating pressure (MPa): 1.5 ●Matching side mounting size: R1 ●Cover color: Yellow ●Mounting size: Rc1 ●Compatible coupler: 40 type ●Color: Yellow ●Maximum operating pressure: 1.5MPa ●Operating temperature range: -20℃ to 80℃ Materials/Finish: ●Body: Steel ●Seal rubber: Nitrile rubber (NBR) Caution: ●The color is painted, so peeling may occur depending on the usage conditions.
