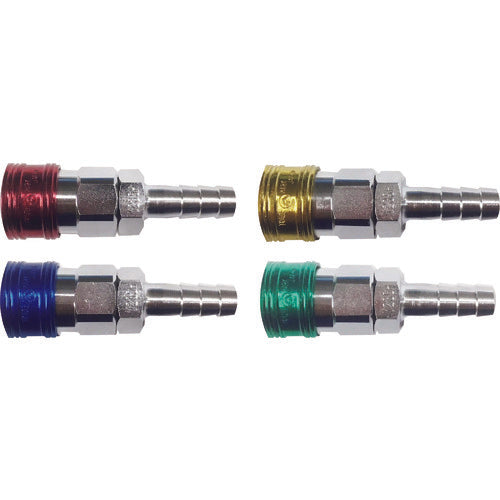

Yamato Metal Coupling BLY-C Series Color Coupling Socket (for Hose Installation) Red 3 Pieces Mating Hose Inch Size (inch) 1/2 BLY48-SH-R 1 Piece

Catalog number: BLY48-SH-R Features: ●The first color coupling in the industry. Applications: ●Suitable for color-coding piping lines. Specifications: ●Pressure resistance (MPa): 2.0 ●Mating hose size (mm): 1 ●Fluid used: Air ●Maximum operating pressure (MPa): 1.5 ●Mating hose size (inch): 1 ●Mating mounting size: 1 hose port ●Cover color: Red ●Mounting size: 1 ●Compatible coupler: 40 type ●Color: Red ●Maximum operating pressure: 1.5MPa ●Operating temperature range: -20℃ to 80℃ Materials/Finish: ●Body: Steel ●Seal rubber: Nitrile rubber (NBR) Caution: ●The color is painted, so peeling may occur depending on the usage conditions.
