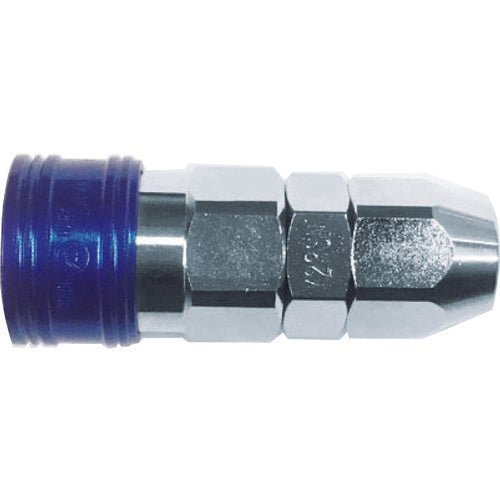

Yamato BLY-C Series Color Coupling Socket (for mounting urethane hose) BLY22-SN-B 1 pc

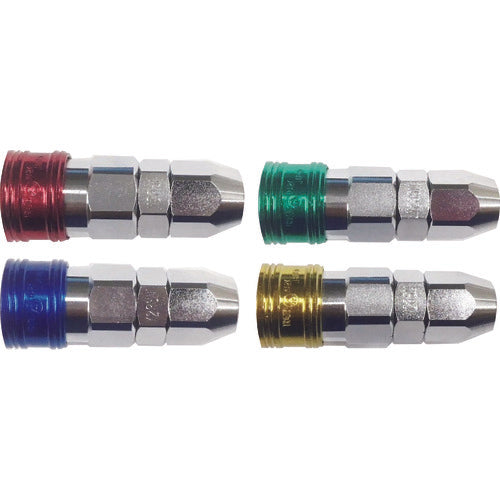

Catalog number: BLY22-SN-B Features: ●The first color coupling in the industry. Applications: ●Suitable for color-coding piping lines. Specifications: ●Matching hose size (mm): 6.5 x 10.0 ●Fluid used: Air ●Maximum operating pressure (MPa): 1.5 ●Operating temperature range (℃): -20 to 80 ●Matching hose size inner diameter (mm): 6.5 ●Matching hose size outer diameter (mm): 10.0 ●Color: Blue ●Maximum operating pressure: 1.5MPa ●Operating temperature range: -20℃ to 80℃ Materials/Finish: ●Body: Steel ●Seal rubber: Nitrile rubber (NBR) Caution: ●The color is painted, so peeling may occur depending on the usage conditions.
