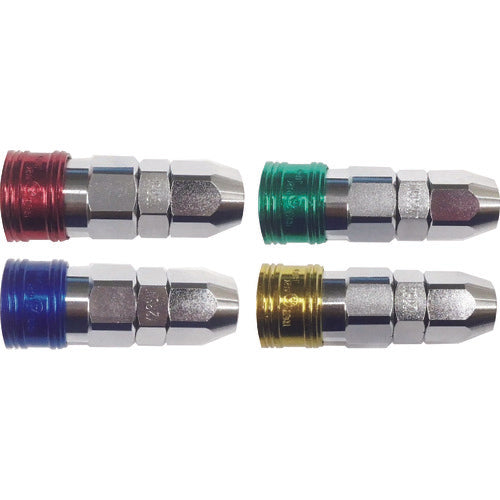

Yamato BLY-C Series Color Coupling Socket (for Urethane Hose Installation) BLY23-SN-R 1 pc

Catalog number: BLY23-SN-R Features: ●The industry's first color coupling. Applications: ●Suitable for color-coding piping lines. Specifications: ●Matching hose size (mm): 8.5 x 12.5 ●Fluid used: Air ●Maximum operating pressure (MPa): 1.5 ●Operating temperature range (℃): -20 to 80 ●Matching hose size inner diameter (mm): 8.5 ●Matching hose size outer diameter (mm): 12.5 ●Color: Red ●Maximum operating pressure: 1.5MPa ●Operating temperature range: -20℃ to 80℃ Materials/Finish: ●Body: Steel ●Seal rubber: Nitrile rubber (NBR) Caution: ●The color is painted, so peeling may occur depending on the usage conditions.
