（有）ヤマトエンジニアリング

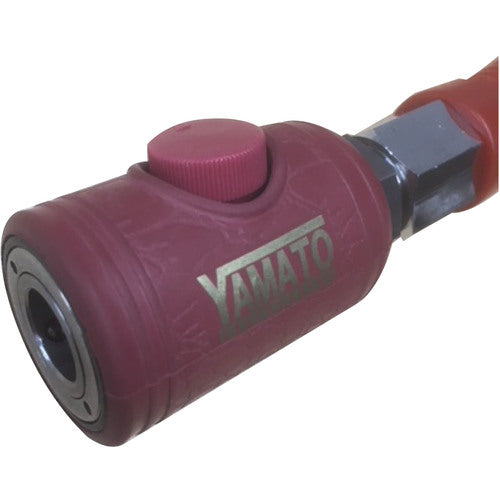

Yamato PVC soft braided air hose (with button-type coupling) TAC65-10BT 1 piece
Yamato PVC soft braided air hose (with button-type coupling) TAC65-10BT 1 piece
Regular price
¥7,283
Regular price
Sale price
¥7,283
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalogue number: TAC65-10BT Features: ●Flexible, smooth, lightweight and easy to operate. ●Comes with patented button-type coupling. Specifications: ●Color: Red ●Outer diameter (mm): 10 ●Inner diameter (mm): 6.5 ●Total length (m): 10 ●Thickness (mm): 1.75 ●Connection joint: BLB-22SN, BLY-22PN ●Allowable bending radius: 150 ●Fluid used: Air ●Maximum operating pressure: 1.5MPa ●Operating temperature range: -20 to 60°C Material/Finish: ●Polyvinyl chloride (PVC) Set contents/Accessories: ●Button-type coupling
