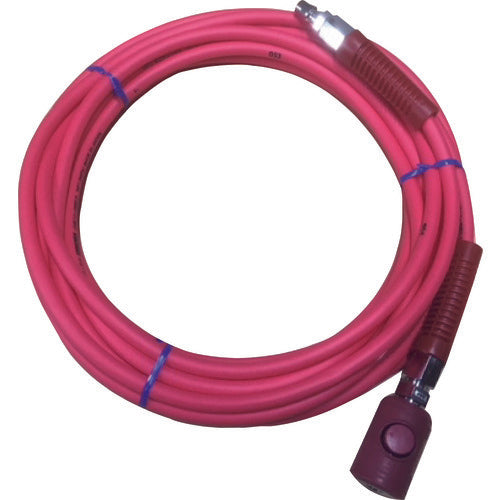

Yamato PVC soft braided air hose (with button-type coupling) TAC85-20BT 1 piece
Yamato PVC soft braided air hose (with button-type coupling) TAC85-20BT 1 piece
Regular price
¥14,470
Regular price
Sale price
¥14,470
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

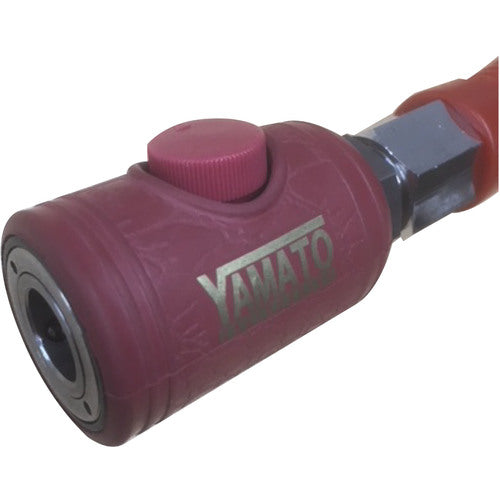

Catalogue number: TAC85-20BT Features: ●Flexible, smooth, lightweight and easy to operate. ●Comes with patented button-type coupling. Specifications: ●Color: Red ●Outer diameter (mm): 12.5 ●Inner diameter (mm): 8.5 ●Total length (m): 20 ●Thickness (mm): 2 ●Connection joint: BLB-23SN, BLY-23PN ●Allowable bending radius: 150 ●Fluid used: Air ●Maximum operating pressure: 1.5MPa ●Operating temperature range: -20 to 60°C Material/Finish: ●Polyvinyl chloride (PVC) Set contents/Accessories: ●Button-type coupling
