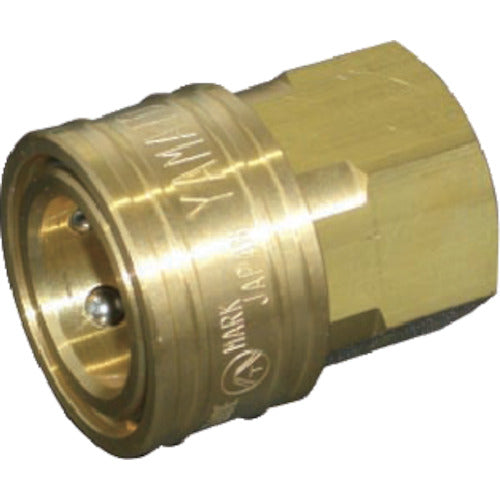

Yamato STY Coupling Socket (for male thread installation, brass) STY16-SF STY16-SF BSBM 1 piece

Catalog number: STY16-SF BSBM Features: ●The valve-less internal structure reduces pressure loss and allows even highly viscous fluids to flow extremely smoothly. Applications: ●Valve-less structure for high-viscosity fluids. Specifications: ●Pressure resistance (MPa): 2.3 ●Mating installation size: R2 ●Usable fluids: air, water, hydraulic oil, etc. ●Maximum operating pressure (MPa): 1.5 ●Material: Brass ●Usable temperature range: -20 to 80°C ●Valve-less Material/Finish: ●Body: Brass ●Seal rubber: Nitrile rubber (NBR)
