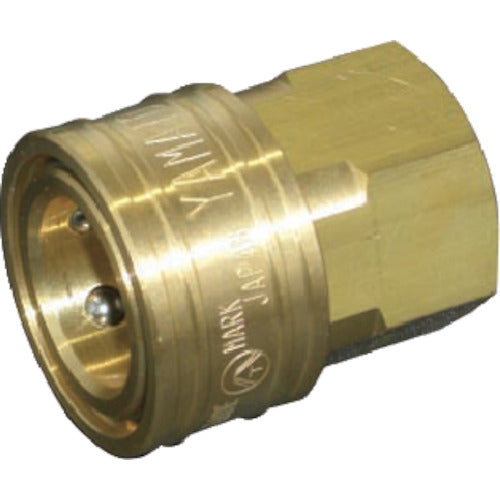

Yamato STY Coupling Socket (for male thread installation, brass) STY6-SF STY6-SF BSBM 1 piece

Catalog number: STY6-SF BSBM Features: ● Valve-less internal structure reduces pressure loss and allows even highly viscous fluids to flow extremely smoothly. Applications: ● Valve-less structure for high-viscosity fluids. Specifications: ● Pressure resistance (MPa): 4.5 ● Counterpart mounting size: R3/4 ● Fluids used: air, water, hydraulic oil, etc. ● Maximum operating pressure (MPa): 3.0 ● Material: Brass ● Operating temperature range: -20 to 80°C ● Valve-less Material/Finish: ● Body: Brass ● Sealing rubber: Nitrile rubber (NBR)
