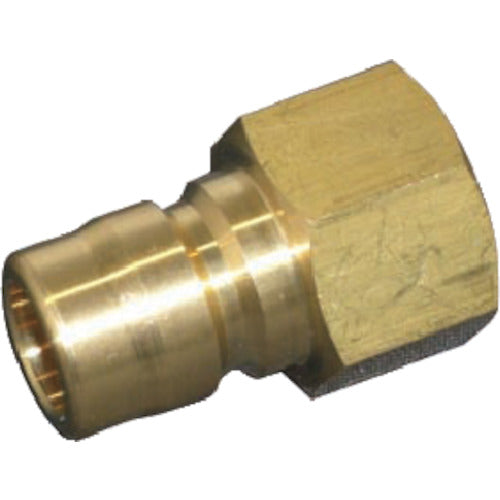

Yamato STY coupling plug (for male thread installation, brass) STY8-PF STY8-PF BSBM 1 piece

Catalog number: STY8-PF BSBM Features: ● Valve-less internal structure reduces pressure loss and allows even highly viscous fluids to flow extremely smoothly. Applications: ● Valve-less structure for high viscosity fluids. Specifications: ● Pressure resistance (MPa): 4.5 ● Counterpart mounting size: R1 ● Fluids used: air, water, hydraulic oil, etc. ● Maximum operating pressure (MPa): 3.0 ● Material: Brass ● Operating temperature range: -20 to 80°C Material/Finish: ● Body: Brass
