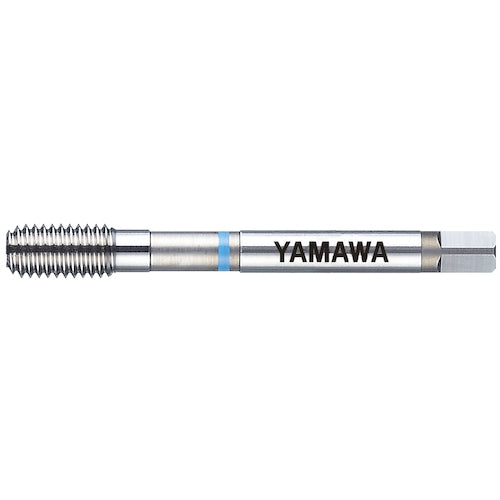

Yamawa Simple Screw Inspection Tool SIT M10X1.5 6H GB SIT-M10X1.5-6H-GB 1 piece

Catalog number: SIT-M10X1.5-6H-GB Features: * Blue coloring is used for "through use" and red coloring is used for "stop use" for easy identification and storage. * High-quality material (HSS) is used for significantly longer life. * Step thread is used at the tip of the threaded part, reducing the burden of inspection work and improving work efficiency. * The tip of the SIT "through use" is gradually enlarged over the entire thread, making it easy to enter the female thread, which is particularly effective when inspecting fine thread pitch. * Step thread is not used for "stop use". Use: ●For through use Specifications: ●Precision: 6H ●Precision notation: JIS ●Nominal size: M10 ●Pitch (mm): 1.5 ●Thread length (mm): 15 ●Total length (mm): 75 ●Shank diameter (mm): 7 ●Shank square section (mm): 5.5 ●Machined thread: Metric thread ●Surface treatment: Non-coated ●For metric threads Material/Finish: ●High-speed tool steel (HSS)
