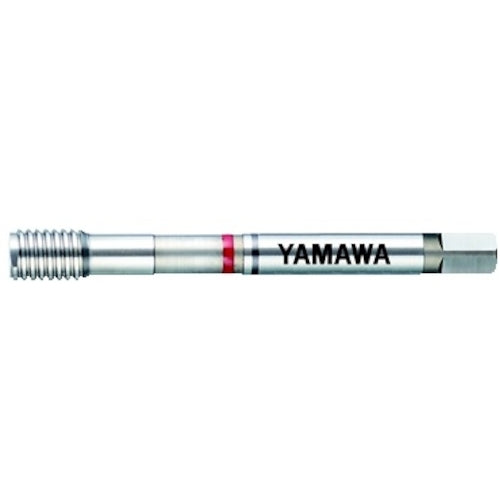

Yamawa Simple Screw Inspection Tool SIT M15X1.5 6H NB SIT-M15X1.5-6H-NB 1 piece

Catalog number: SIT-M15X1.5-6H-NB Features: * Blue coloring is used for "through use" and red coloring is used for "stop use" for easy identification and storage. * High-quality material (HSS) is used for significantly longer life. * Step thread is used at the tip of the threaded part, reducing the burden of inspection work and improving work efficiency. * The tip of the SIT "through use" makes it easy to enter the female thread as the entire thread gradually becomes larger, which is particularly effective when inspecting fine thread pitch. * Step thread is not used for "stop use". Uses: ●For stopping Specifications: ●Precision: 6H ●Precision notation: JIS ●Nominal dimensions: M15 ●Pitch (mm): 1.5 ●Thread length (mm): 10 ●Total length (mm): 95 ●Shank diameter (mm): 12.5 ●Shank square section (mm): 10 ●Machined thread: Metric thread ●Surface treatment: Non-coating ●For metric threads Material/Finish: ●High-speed tool steel (HSS)
