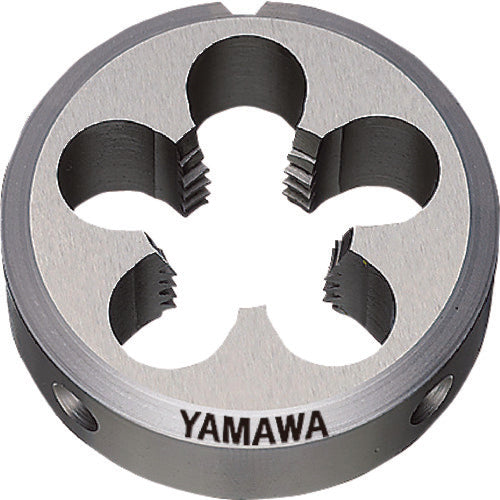

Yamawa American Solid Die for Parallel Pipe Threads D NPSM 1/8-27 38 Diameter D-NPSM-1/8-27-38 1 pc

Catalog number: D-NPSM-1/8-27-38 Features: ●Solid die for machining American pipe parallel male threads with improved die runout accuracy. Applications: ●For machining male threads. Specifications: ●Nominal size: 1/8 ●Number of threads: 27 ●Outer diameter (mm): 38 ●Thickness (mm): 13 ●Machined thread: Pipe parallel thread ●Number of chip holes: 4 ●Number of engagement threads: 2.5 ●Surface treatment: Non-coated Material/Finish: ●High-speed tool steel (HSS)
