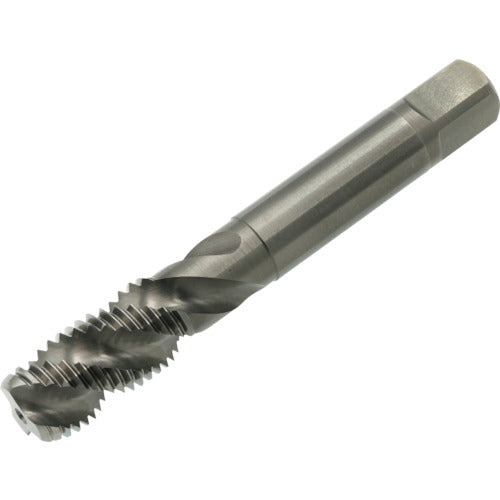

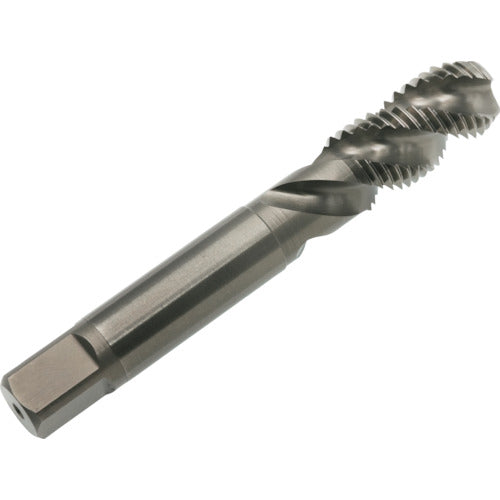

Yamawa Spiral Tap for Aluminum (for Insert Coil Screws) AL-SP STI 1B M10X1.25 AL-SP-1B-STI-M10X1.25 1 Piece

Catalog number: AL-SP-1B-STI-M10X1.25 Features: ● For machining female threads to insert insert coils for the purpose of reinforcing the female thread and increasing durability in parts made of relatively soft materials such as aluminum. Applications: ● For blind hole machining. ● Workpiece materials: brass, brass castings, bronze, rolled aluminum, aluminum alloy castings, magnesium alloy castings, zinc alloy castings. Specifications: ● Precision: 1b ● Nominal size: M10 ● Pitch (mm): 1.25 ● Thread length (mm): 26 ● Total length (mm): 82 ● Shank diameter (mm): 8.5 ● Square shank section (mm): 6.5 ● Counterbore diameter (mm): 10.47 ● Number of engagement threads: 2.5 threads ● Machined thread: Metric thread ● Surface treatment: Nitriding ● Number of grooves: 3 ● Number of grooves: 3 ● Shank length: 42mm ● Length of square shank section: 9mm ● Reference outer diameter: 11.624mm Material/Finish: ● High-speed tool steel (HSS)
