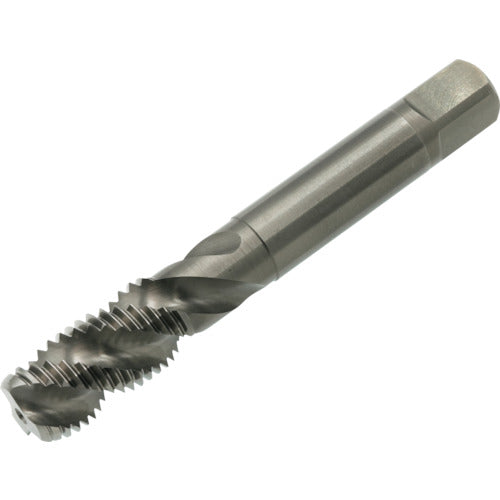

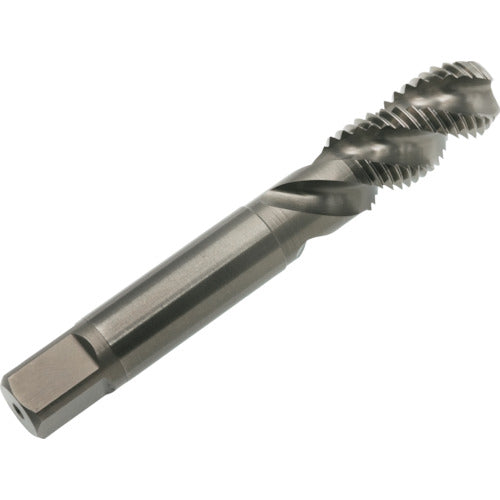

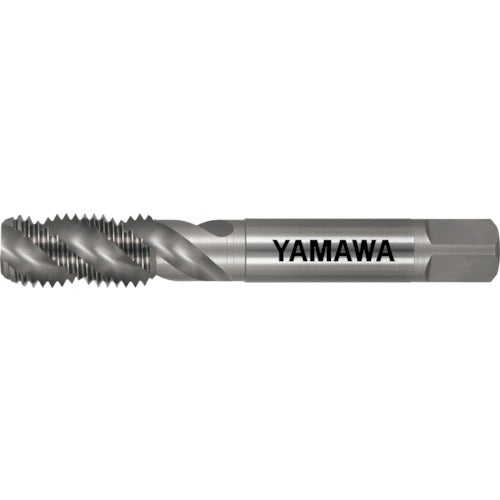

Yamawa Spiral Tap for Aluminum (for Insert Coil Screws) AL-SP STI 1B M10X1.5 AL-SP-M10X1.5 1 Piece

Catalog number: AL-SP-M10X1.5 Features: ● For machining female threads for inserting insert coils in order to reinforce the female thread and increase durability in parts made of relatively soft materials such as aluminum. Applications: ● For blind hole machining. ● Workpiece: Brass, brass castings, bronze, rolled aluminum, aluminum alloy castings, magnesium alloy castings, zinc alloy castings. Specifications: ● Precision: 1b ● Nominal size: M10 ● Pitch (mm): 1.5 ● Thread length (mm): 26 ● Total length (mm): 82 ● Shank diameter (mm): 8.5 ● Shank square section (mm): 6.5 ● Pilot hole diameter (mm): 10.5 ● Thread length (mm): 26 ● Number of grooves: 3 ● Shank length: 42mm ● Length of shank square section: 9mm ● Reference dimension of outer diameter: 11.948mm Material/Finish: ● High-speed tool steel (HSS)
