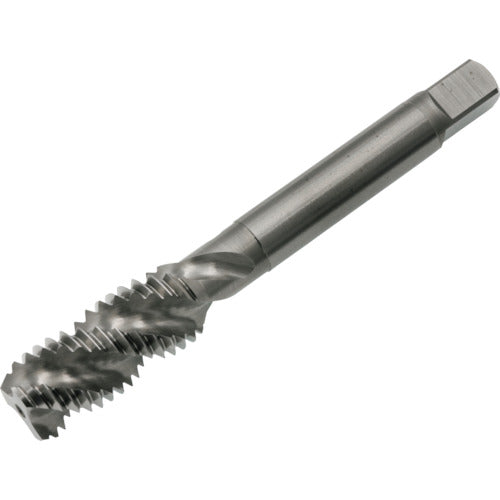

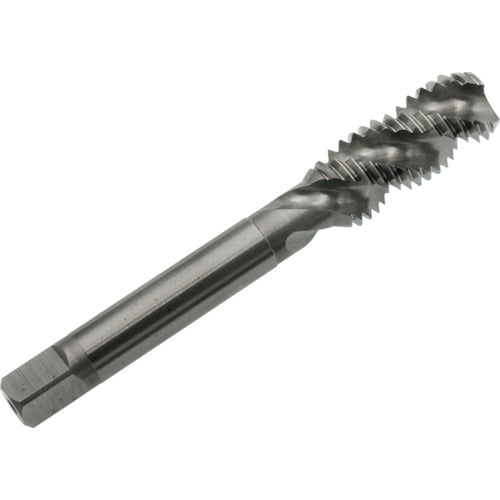

Yamawa Spiral Tap for Aluminum Materials AL-SP 1.5P P3 M16X1.5 AL-SP-1.5P-P3-M16X1.5 1 Piece

Catalog number: AL-SP-1.5P-P3-M16X1.5 Features: ●A tap that eliminates chip jamming and chip clogging when cutting aluminum die castings and aluminum castings, and eliminates female thread stripping. Applications: ●For blind hole processing. ●Cutting materials: Brass, brass castings, bronze, rolled aluminum, aluminum alloy castings, magnesium alloy castings, zinc alloy castings. Specifications: ● Precision: P3 ● Precision notation: P grade ● Nominal size: M16 ● Pitch (mm): 1.5 ● Thread length (mm): 26 ● Total length (mm): 95 ● Shank diameter (mm): 12.5 ● Square shank section (mm): 10 ● Counterbore diameter (mm): 14.6 ● Number of engagement threads: 1.5 threads ● Machined thread: Metric thread ● Surface treatment: Nitriding treatment ● Number of grooves: 3 ● Shank length: 48 mm ● Length of square shank section: 13 mm ● Number of grooves: 3 Material/Finish: ● High-speed tool steel (HSS)
