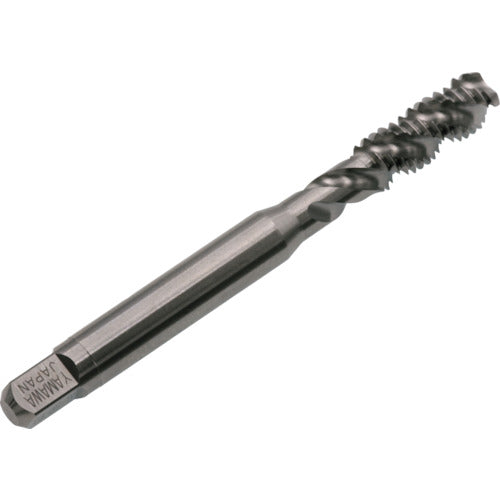

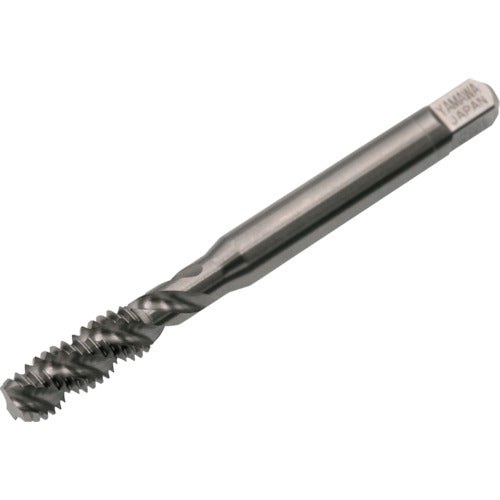

Yamawa Spiral Tap for Aluminum Materials AL-SP 1.5P P3 M4X0.7 FLAT AL-SP-1.5P-P3-FLAT-M4X0.7 1 Piece

Catalog number: AL-SP-1.5P-P3-FLAT-M4X0.7 Features: ●A tap that eliminates chip jamming and chip clogging when cutting aluminum die castings and aluminum castings, and eliminates female thread stripping. Applications: ●For blind hole machining. ●Cutting materials: Brass, brass castings, bronze, rolled aluminum, aluminum alloy castings, magnesium alloy castings, and zinc alloy castings. Specifications: ● Precision: P3 ● Precision notation: P grade ● Nominal dimensions: M4 ● Pitch (mm): 0.7 ● Thread length (mm): 11 ● Total length (mm): 52 ● Shank diameter (mm): 5 ● Square shank section (mm): 4 ● Counterbore diameter (mm): 3.38 ● Number of engagement threads: 1.5 threads ● Machined thread: Metric thread ● Surface treatment: Nitriding ● Shank length: 29 mm ● Length of square shank section: 7 mm ● Neck length: 17 mm ● Number of grooves: 3 Material/Finish: ● High-speed tool steel (HSS)
