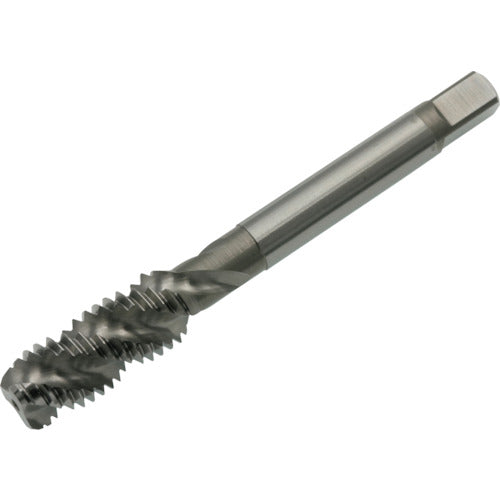

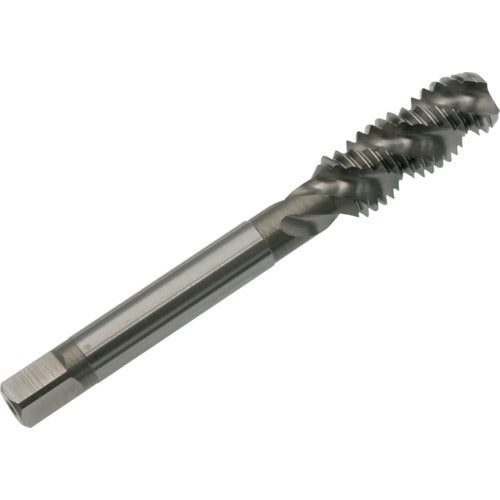

Yamawa Spiral Tap for Aluminum Materials AL-SP P3 M10X1.25 AL-SP-P3-M10X1.25-2.5P 1 Piece

Catalog number: AL-SP-P3-M10X1.25-2.5P Features: ● Stable thread machining is possible even at high speeds on light alloy castings such as aluminum die castings and aluminum castings. ● Optimized blade design allows for stable and beautiful internal thread machining with less burring on the inner diameter, which is prone to occur when tapping light alloys. Applications: ● For blind hole machining. ● Workpiece materials: brass, brass castings, bronze, rolled aluminum, aluminum alloy castings, magnesium alloy castings, zinc alloy castings. Specifications: ● Precision: P3 ● Precision notation: P grade ● Nominal size: M10 ● Pitch (mm): 1.25 ● Thread length (mm): 23 ● Total length (mm): 75 ● Shank diameter (mm): 7 ● Square shank section (mm): 5.5 ● Counterbore diameter (mm): 8.85 ● Number of engagement threads: 2.5 threads ● Machined thread: Metric thread ● Surface treatment: Nitriding ● Number of grooves: 3 ● Number of grooves: 3 ● Shank length: 38 mm ● Length of square shank section: 8 mm Material/Finish: ● High-speed tool steel (HSS)
