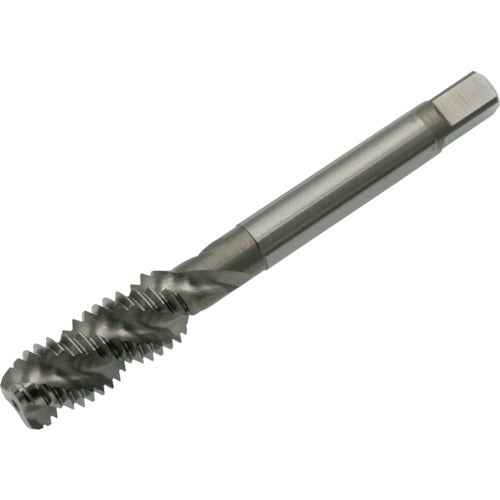

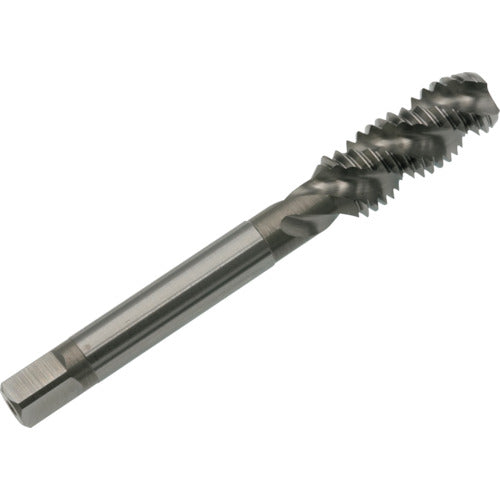

Yamawa Spiral Tap for Aluminum Materials AL-SP P3 M16X2 AL-SP-P3-M16X2-2.5P 1 Piece

Catalog number: AL-SP-P3-M16X2-2.5P Features: ● Stable thread machining is possible even at high speeds on light alloy castings such as aluminum die castings and aluminum castings. ● Optimized blade design allows for stable and beautiful internal thread machining with less burring on the inner diameter, which is prone to occur when tapping light alloys. Applications: ● For blind hole machining. ● Workpiece materials: brass, brass castings, bronze, rolled aluminum, aluminum alloy castings, magnesium alloy castings, zinc alloy castings. Specifications: ● Precision: P3 ● Precision notation: P grade ● Nominal size: M16 ● Pitch (mm): 2 ● Thread length (mm): 26 ● Total length (mm): 95 ● Shank diameter (mm): 12.5 ● Square shank section (mm): 10 ● Counterbore diameter (mm): 14.1 ● Number of engagement threads: 2.5 threads ● Machined thread: Metric thread ● Surface treatment: Nitriding ● Number of grooves: 3 ● Number of grooves: 3 ● Shank length: 48 mm ● Length of square shank section: 13 mm Material/Finish: ● High-speed tool steel (HSS)
