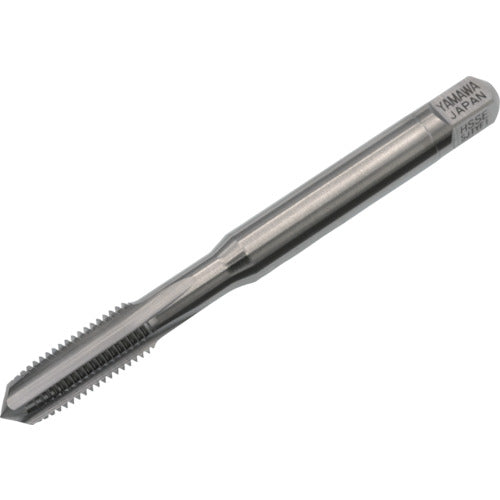

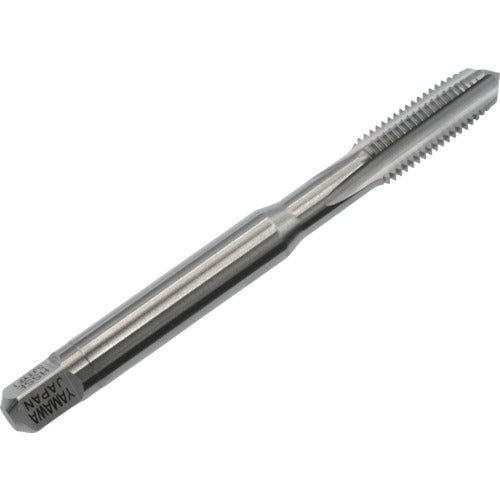

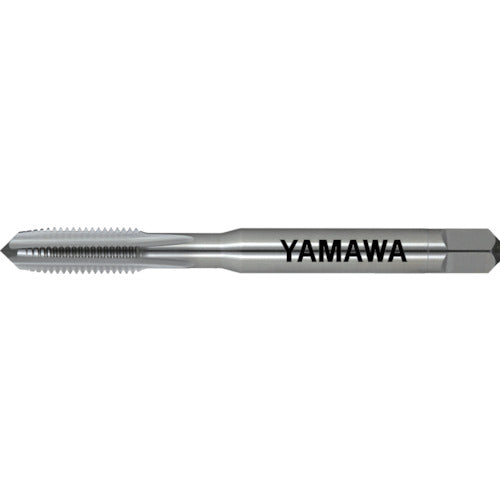

Yamawa Hand Tap for Aluminum (for Insert Coil Screws) AL-HT STI 1B 6-40UNF 5P AL-HT-STI-1B-6-40UNF-5P 1 piece

Catalog number: AL-HT-STI-1B-6-40UNF-5P Features: ● For parts made of relatively soft materials such as aluminum, this machine processes female threads to insert insert coils for the purpose of reinforcing the female thread and increasing durability. ● There are two types of chamfers: blind hole 1.5P and through hole 5P. Applications: ● Workpiece: aluminum rolled material, aluminum alloy castings, zinc alloy castings. Specifications: ● Tip: Medium ● Precision: 1b ● Nominal size: UNF6 ● Thread length (mm): 13 ● Total length (mm): 60 ● Shank diameter (mm): 5.5 ● Square shank section (mm): 4.5 ● Counterbore diameter (mm): 3.77 ● Number of threads: 40 ● Surface treatment: Non-coated ● Machined thread: Unified thread ● Number of engaging threads: 5 ● Surface treatment: Non-coated ● Shank length (mm): 33 ● Length of square shank section (mm): 7 ● Number of grooves: 3 ● Reference outer diameter (mm): 4.330 Material/Finish: ● High-speed tool steel (HSS)
