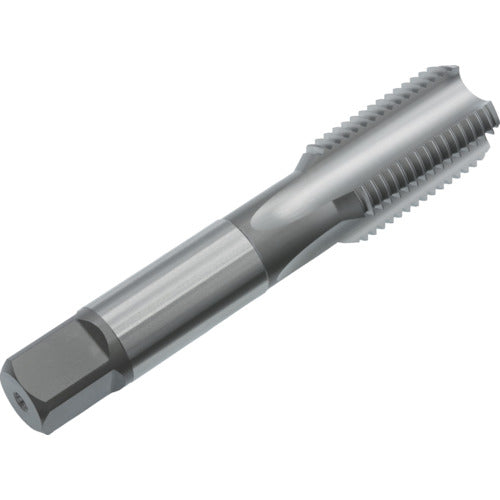

Yamawa Hand Tap for Aluminum (for Insert Coil Screws) AL-HT STI 1B M24X3 1.5P AL-HT-M24-3 1 piece

Catalog number: AL-HT-M24-3 Features: ● For parts made of relatively soft materials such as aluminum, this machine processes female threads for inserting insert coils to reinforce the female thread and increase durability. ● There are two types of chamfers: blind hole 1.5P and through hole 5P. ● There are two types of chamfers: blind hole 1.5P and through hole 5P. Applications: ● Workpiece: Aluminum rolled material, aluminum alloy castings, zinc alloy castings. Specifications: ● Tip: Top ● Precision: 1b ● Precision notation: 1b ● Nominal size: M24 ● Pitch (mm): 3 ● Thread length (mm): 46 ● Total length (mm): 135 ● Shank diameter (mm): 23 ● Square shank section (mm): 17 ● Counterbore diameter (mm): 25.1 ● Surface treatment: Non-coated ● Thread length (mm): 46 ● Machined thread: Metric thread ● Number of teeth: 1.5 ● Surface treatment: Non-coated ● Shank length (mm): 62 ● Length of square shank section (mm): 20 ● Number of grooves: 4 ● Reference outer diameter (mm): 27.897 Material/Finish: ● High-speed tool steel (HSS)
