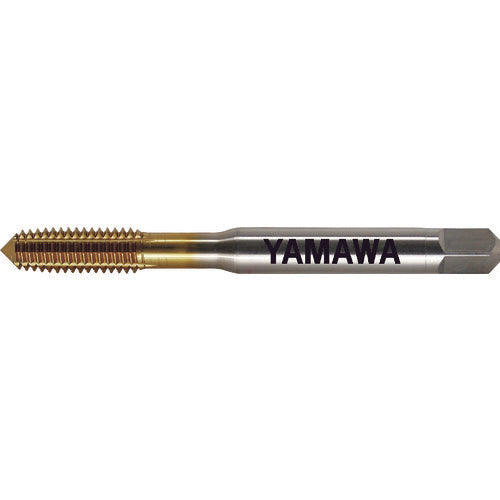

Yamawa Coating Roll Tap R+V G5 M1X0.25 P R+V-G5-M1X0.25-P 1 piece

Catalog number: R+V-G5-M1X0.25-P Features: ●Coated roll tap suitable for thread machining of steel and non-ferrous metals. Applications: ●For through hole machining. ●Workpiece: Low carbon steel, medium carbon steel, stainless steel, copper, rolled aluminum, aluminum alloy castings, zinc alloy castings. Specifications: ●Accuracy: G5 ●Accuracy notation: G grade ●Nominal size: M1 ●Pitch (mm): 0.25 ●Thread length (mm): 4.5 ●Total length (mm): 36 ●Shank diameter (mm): 3 ●Shank square section (mm): 2.5 ●Pilot hole diameter (mm): 0.91 ●Number of engagement threads: 4 ●Machining thread: Metric thread ●Surface treatment: TiN coating ●Shank length: 24mm ●Shank square section length: 5mm Material/Finish: ●High speed tool steel (HSS)
