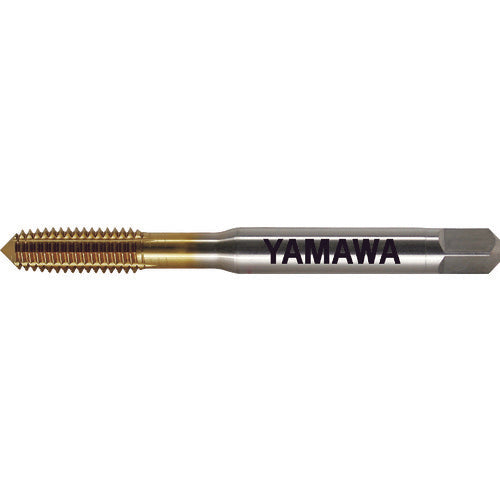

Yamawa Coating Roll Tap R+V G6 M1.7X0.35 B R+V-G6-M1.7X0.35-B 1 piece

Catalog number: R+V-G6-M1.7X0.35-B Features: ●Coated roll tap suitable for threading steel and non-ferrous metals. Applications: ●For blind hole processing. ●Workpiece: Low carbon steel, medium carbon steel, stainless steel, copper, rolled aluminum, aluminum alloy castings, zinc alloy castings. Specifications: ●Accuracy: G6 ●Accuracy notation: G grade ●Nominal size: M1.7 ●Pitch (mm): 0.35 ●Thread length (mm): 6.3 ●Total length (mm): 36 ●Shank diameter (mm): 3 ●Shank square section (mm): 2.5 ●Pilot hole diameter (mm): 1.57 ●Number of engagement threads: 2 ●Thread processing: Metric thread ●Surface treatment: TiN coating ●Shank length: 24mm ●Shank square section length: 5mm Material/Finish: ●High speed tool steel (HSS)
