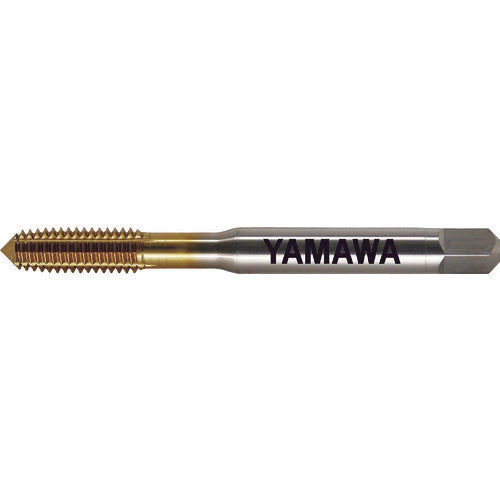

Yamawa Coating Roll Tap R+V G8 M3X0.5 P R+V-G8-M3X0.5-P 1 piece

Catalog number: R+V-G8-M3X0.5-P Features: ●Coated roll tap suitable for thread machining of steel and non-ferrous metals. Applications: ●For through hole machining. ●Workpiece: Low carbon steel, medium carbon steel, stainless steel, copper, rolled aluminum, aluminum alloy castings, zinc alloy castings. Specifications: ●Accuracy: G8 ●Accuracy notation: G class ●Nominal size: M3 ●Pitch (mm): 0.5 ●Thread length (mm): 9 ●Total length (mm): 46 ●Shank diameter (mm): 4 ●Shank square section (mm): 3.2 ●Pilot hole diameter (mm): 2.81 ●Number of engagement threads: 4 ●Thread machining: Metric thread ●Surface treatment: TiN coating ●Neck length (mm): 14 ●Shank length: 26mm ●Shank square section length: 6mm Material/Finish: ●High speed tool steel (HSS)
