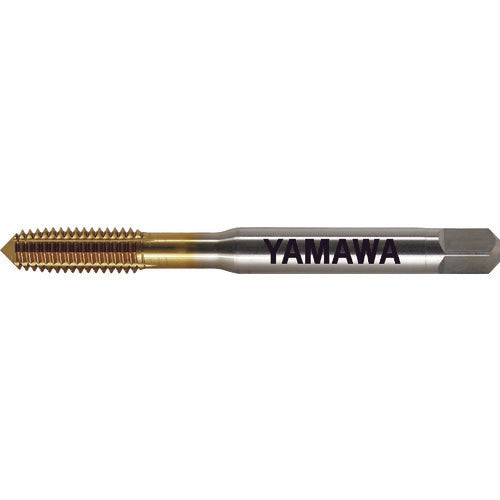

Yamawa Coating Roll Tap R+V G8 M5X0.8 B R+V-G8-M5X0.8-B 1 piece

Catalog number: R+V-G8-M5X0.8-B Features: ●Coated roll tap suitable for threading steel and non-ferrous metals. Applications: ●For blind hole machining. ●Workpiece: Low carbon steel, medium carbon steel, stainless steel, copper, rolled aluminum, aluminum alloy castings, zinc alloy castings. Specifications: ●Accuracy: G8 ●Accuracy notation: G class ●Nominal size: M5 ●Pitch (mm): 0.8 ●Thread length (mm): 13 ●Total length (mm): 60 ●Shank diameter (mm): 5.5 ●Shank square section (mm): 4.5 ●Pilot hole diameter (mm): 4.65 ●Number of teeth: 2 teeth ●Machining thread: Metric thread ●Surface treatment: TiN coating ●Neck length (mm): 22 ●Shank length: 33mm ●Shank square section length: 7mm Material/Finish: ●High speed tool steel (HSS)
