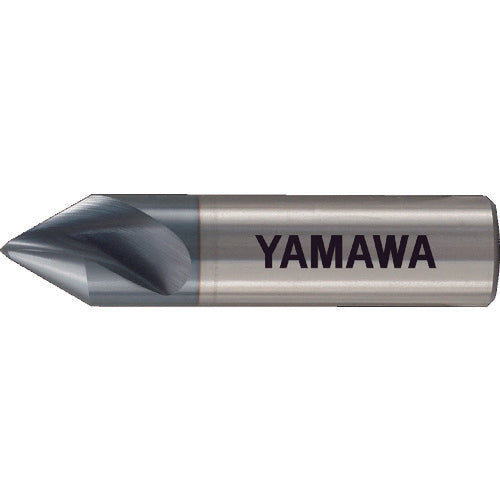

Yamawa Coated Single-Edged Point Drill PE-60° AUPES 20X5X60° AUPES-20X5X60 1 piece

Catalog number: AUPES-20X5X60 Features: ●Can be used for multiple purposes such as simultaneous combined positioning and chamfering, and groove machining. ●Single-edged point drills allow greater freedom of protrusion, allowing chips to be discharged smoothly. ●Resolves problems with breakage of the drill part of center hole drills. ●Can perform simultaneous combined positioning and chamfering, and can be used for multiple purposes such as groove machining. ●High machining accuracy is achieved due to good bite caused by the two-stage flat shape. ●Single-edged point drills allow greater freedom of protrusion, allowing chips to be discharged smoothly. Uses: ●Cutting materials: mild steel, carbon steel, alloy steel, tempered steel, stainless steel, aluminum alloy castings Specifications: ●Taper diameter (mm): 5 ●Shank diameter (mm): 20 ●Total length (mm): 80 ●Center hole angle (°): 60 ●Drill diameter (mm): 5 ●Drill length (mm): 1.30 ●Surface treatment: TiCN coating ●Point diameter (mm): 5 ●Point length (mm): 1.30 ●Blade shape: single-edged ●Counterbore angle: 60° ●Blade shape: single-edged Material/Finish: ●High-speed tool steel (HSS)
