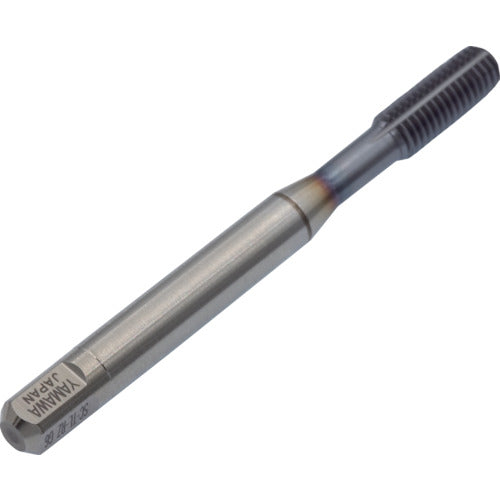

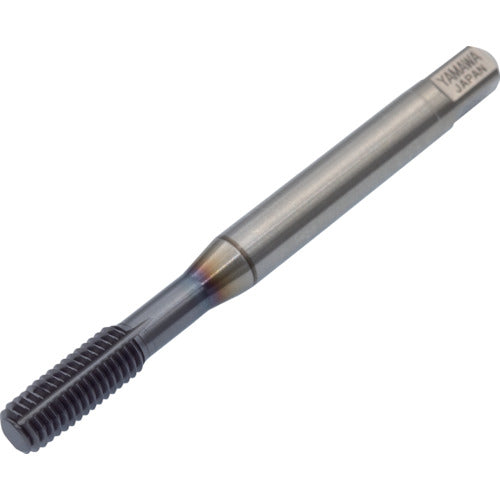

Yamawa Short Chamfer Torqueless Roll Tap SC-TL-RZ G3 M1.4X0.2 1P SC-TL-RZ-G3-M1.4X0.2-1P 1 piece

Catalog number: SC-TL-RZ-G3-M1.4X0.2-1P Features: ●With one chamfer, it is possible to machine a female thread right up to the pilot hole. ●It is possible to machine a high-quality female thread with few burrs. Applications: ●For blind hole machining. ●Workpiece: low carbon steel, medium carbon steel, high carbon steel, stainless steel, aluminum alloy castings, zinc alloy castings. Specifications: ●Accuracy: G3 ●Nominal size: M1.4 ●Pitch (mm): 0.2 ●Thread length (mm): 3.6 ●Total length (mm): 36 ●Shank diameter (mm): 3 ●Shank square section (mm): 2.5 ●Number of chamfers: 1 ●Machine thread: Metric thread ●Surface treatment: TiCN coating ●Shank length (mm): 24 ●Shank square section length (mm): 5 ●Machine thread: Metric thread ●Number of chamfers: 1 Material/Finish: ●Powdered high speed steel (HSS-P)
