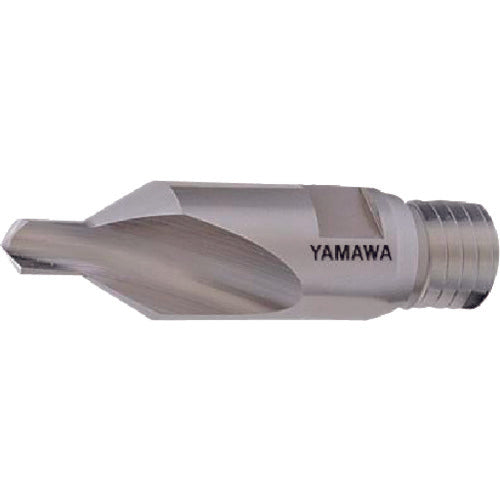

Yamawa Joint Tool Weak Twist Groove A Type 60° Carbide Center Hole Drill JO-C-CDS 5X60° JO-C-CDS-A-5X60 1 Piece

Catalog number: JO-C-CDS-A-5X60 Features: ●One holder can be fitted with a variety of blades suited to the processing application. ●When damaged, only the blade needs to be replaced. ●By using a special screw, the contact surface is wider and the fastening force is strengthened. ●By providing a conical surface, high runout accuracy is achieved. ●By strengthening the fastening, high rigidity is ensured, and processing with high loads is possible. ●A joint tool with a weak twist groove A-type center hole drill that is particularly suitable for hard materials and mass production processing. Specifications: ●Taper diameter (mm): 5 ●Shank diameter (mm): 12 ●Total length (mm): 43.5 ●Center hole angle (°): 60 ●Drill length (mm): 5.5 ●Surface treatment: Non-coated ●Blade shape: Single-edged ●Body length (mm): 32.5 ●Applicable holder shank diameter: 16 ●Blade length (mm): 5.5 Material/Finish: ●Ultra-fine grain carbide alloy (HF)
