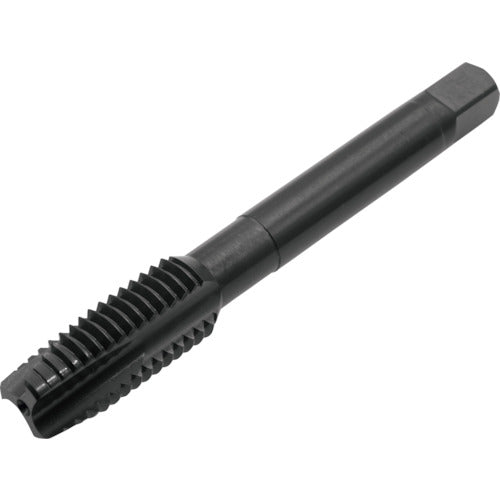

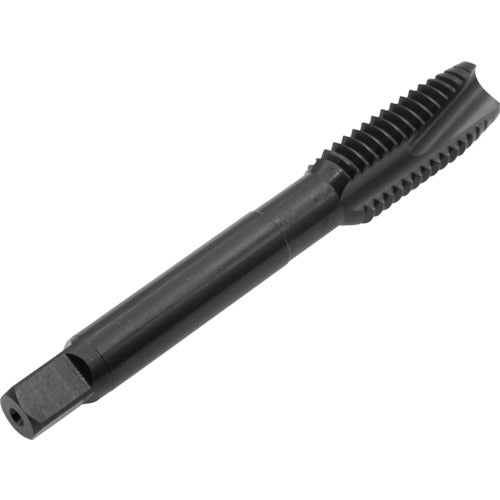

YAMAWA Stainless Steel Point Tap SU-PO P3 M12X1 SU-PO-P3-M12X1 1 piece

Catalog number: SU-PO-P3-M12X1 Features: ● Suitable for through hole machining of stainless steel, which is a material that is extremely hardened and sticky, as well as chromium steel and molybdenum steel. ● Oxidation treatment is applied to the surface to prevent welding. Applications: ● For through hole machining. ● Work material: Low carbon steel, medium carbon steel, high carbon steel, alloy steel, stainless steel. Specifications: ● Accuracy: P3 ● Accuracy notation: P class ● Nominal size: M12 ● Pitch (mm): 1 ● Thread length (mm): 26 ● Total length (mm): 82 ● Shank diameter (mm): 8.5 ● Shank square section (mm): 6.5 ● Pilot hole diameter (mm): 11.09 ● Number of engagement threads: 5 ● Machining thread: Metric thread ● Surface treatment: Oxidation treatment ● Number of grooves: 3 ● Shank length: 42mm ● Length of shank square section: 9mm Material/Finish: ● High speed tool steel (HSS)
