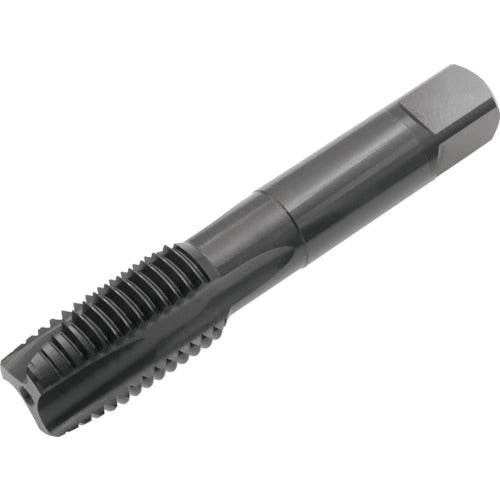

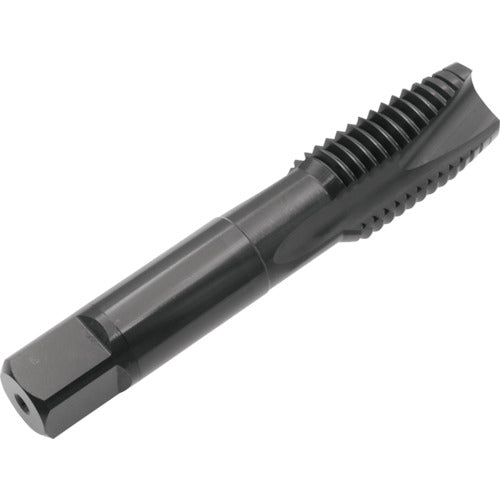

YAMAWA Stainless Steel Point Tap SU-PO P5 M39X4 SU-PO-P5-M39X4 1 piece

Catalog number: SU-PO-P5-M39X4 Features: ● Suitable for through hole machining of stainless steel, which is a material that is extremely hardened and sticky, as well as chromium steel and molybdenum steel. ● Oxidation treatment is applied to the surface to prevent welding. Applications: ● For through hole machining. ● Work material: Low carbon steel, medium carbon steel, high carbon steel, alloy steel, stainless steel. Specifications: ● Accuracy: P5 ● Accuracy notation: P class ● Nominal size: M39 ● Pitch (mm): 4 ● Thread length (mm): 52 ● Total length (mm): 165 ● Shank diameter (mm): 30 ● Shank square section (mm): 23 ● Pilot hole diameter (mm): 35.1 ● Number of engagement threads: 5 ● Machining thread: Metric thread ● Surface treatment: Oxidation treatment ● Number of grooves: 4 ● Shank length: 76mm ● Length of shank square section: 26mm Material/Finish: ● High speed tool steel (HSS)
