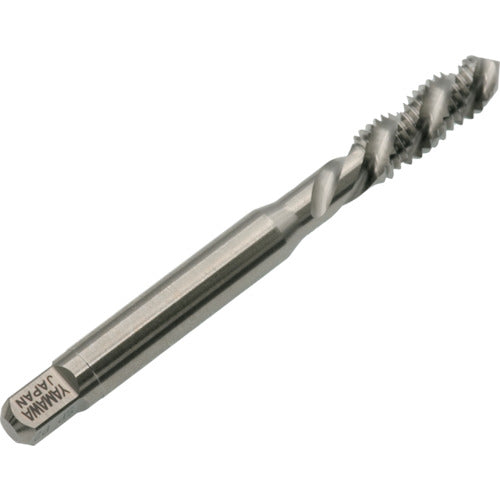

Yamawa Spiral Tap for Left-Hand Threads SP LH P1 M3X0.5 SP-LH-M3X0.5 1 Piece

Catalog number: SP-LH-M3X0.5 Features: ● Left-handed spiral tap for blind hole machining. Applications: ● For blind hole machining. ● Work material: Medium carbon steel, high carbon steel. Specifications: ● Precision: P1 ● Precision notation: P class ● Nominal size: M3 ● Pitch (mm): 0.5 ● Thread length (mm): 9 ● Overall length (mm): 46 ● Shank diameter (mm): 4 ● Shank square section (mm): 3.2 ● Pilot hole diameter (mm): 2.56 ● Number of teeth: 2.5 ● Machined thread: Metric thread ● Surface treatment: Non-coated ● Number of grooves: 3 ● Machined thread: Metric thread ● Number of teeth: 2.5 ● Shank length: 26mm ● Length of shank square section: 6mm ● Neck length: 14mm Material/Finish: ● High-speed tool steel (HSS)
