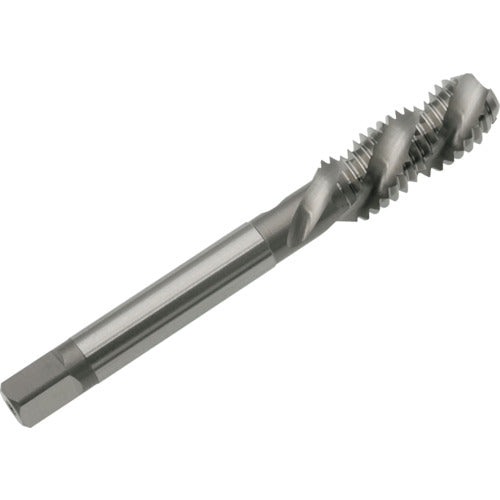

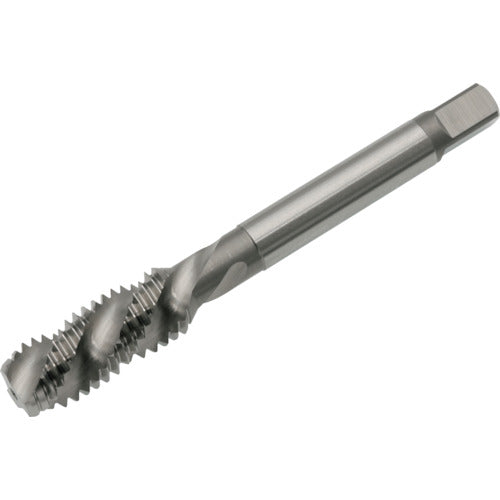

Yamawa Spiral Tap for Left-Hand Threads SP LH P2 M10X1.5 SP-LH-P2-M10X1.5 1 Piece

Catalog number: SP-LH-P2-M10X1.5 Features: ● Left-handed spiral tap for blind hole machining. Applications: ● For blind hole machining. ● Work material: Medium carbon steel, high carbon steel. Specifications: ● Precision: P2 ● Precision notation: P class ● Nominal size: M10 ● Pitch (mm): 1.5 ● Thread length (mm): 23 ● Overall length (mm): 75 ● Shank diameter (mm): 7 ● Shank square section (mm): 5.5 ● Pilot hole diameter (mm): 8.60 ● Number of engagement threads: 2.5 threads ● Machined thread: Metric thread ● Surface treatment: Non-coated ● Number of grooves: 3 ● Number of engagement threads: 2.5 threads ● Shank length (mm): 38 ● Length of shank square section (mm): 8 Material/Finish: ● High-speed tool steel (HSS)
