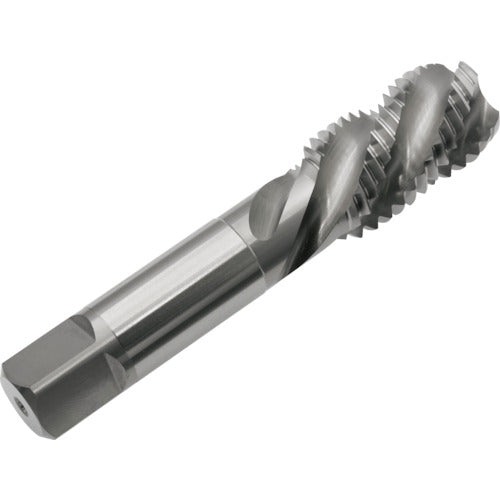

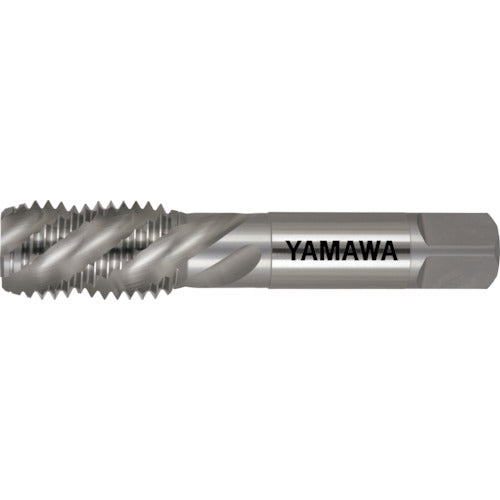

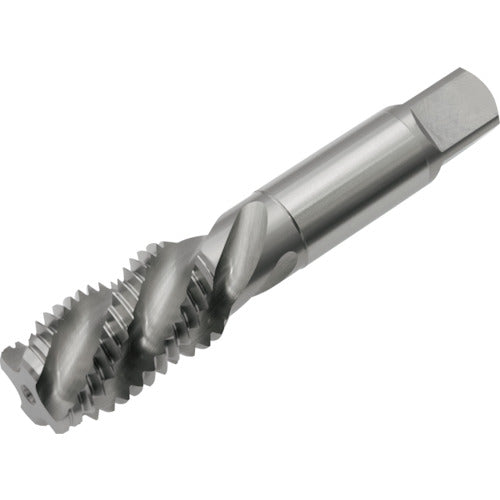

Yamawa Spiral Tap for Left-Hand Threads SP LH P3 3/4W10 SP-LH-P3-3/4W10 1 Piece

Catalog number: SP-LH-P3-3/4W10 Features: ● Left-handed spiral tap for blind hole machining. Applications: ● For blind hole machining. ● Work material: Medium carbon steel, high carbon steel. Specifications: ● Precision: P3 ● Precision notation: P class ● Nominal dimensions: W3/4 ● Thread length (mm): 33 ● Overall length (mm): 105 ● Shank diameter (mm): 15 ● Shank square section (mm): 12 ● Pilot hole diameter (mm): 16.6 ● Number of threads: 10 ● Number of engaging threads: 2.5 threads ● Machining thread: Whitworth thread ● Surface treatment: Non-coated ● Number of grooves: 4 ● Shank length (mm): 50 ● Length of shank square section (mm): 15 Material/Finish: ● High-speed tool steel (HSS)
