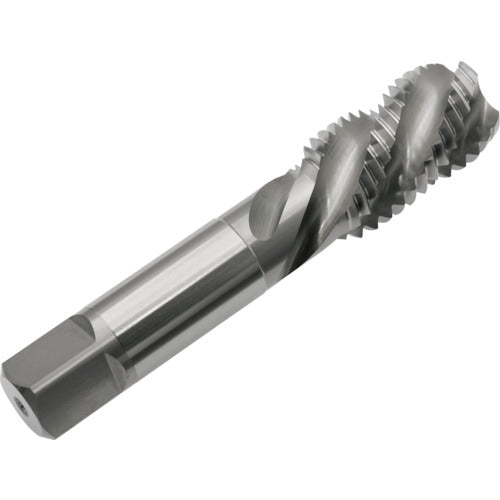

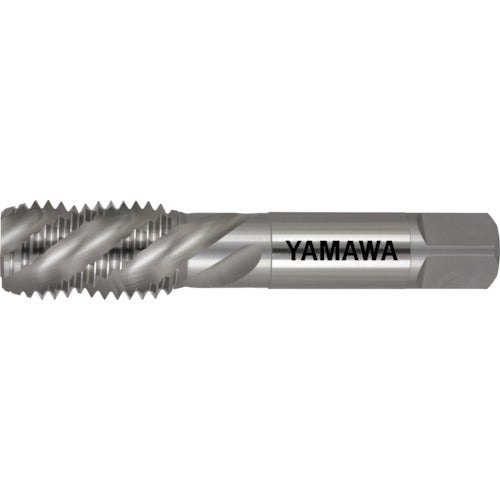

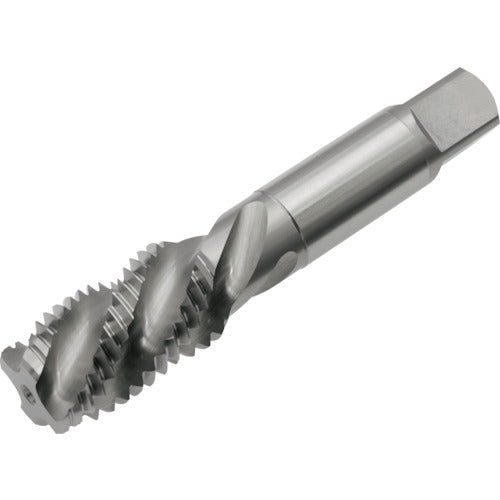

Yamawa Spiral Tap for Left-Hand Threads SP LH P3 M24X3 SP-LH-P3-M24X3 1 Piece

Catalog number: SP-LH-P3-M24X3 Features: ● Left-handed spiral tap for blind hole machining. Applications: ● For blind hole machining. ● Work material: Medium carbon steel, high carbon steel. Specifications: ● Precision: P3 ● Precision notation: P class ● Nominal size: M24 ● Pitch (mm): 3 ● Thread length (mm): 39 ● Overall length (mm): 120 ● Shank diameter (mm): 19 ● Shank square section (mm): 15 ● Pilot hole diameter (mm): 21.1 ● Number of engaging threads: 2.5 threads ● Machined thread: Metric thread ● Surface treatment: Non-coated ● Number of grooves: 4 ● Number of engaging threads: 2.5 threads ● Shank length (mm): 55 ● Length of shank square section (mm): 18 Material/Finish: ● High-speed tool steel (HSS)
