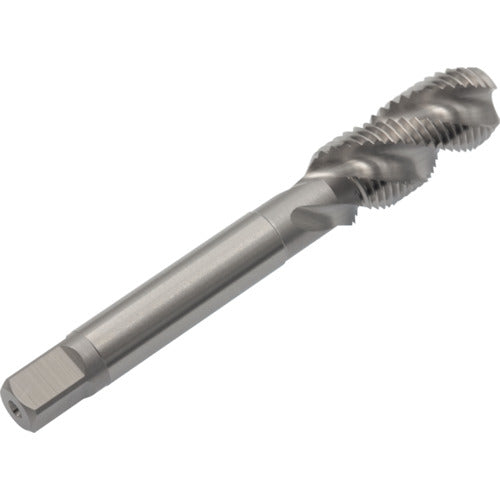

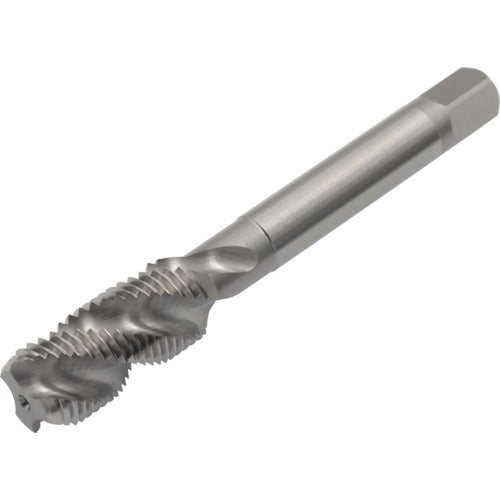

Yamawa Spiral Tap SP P2 5/8-24UNEF SP-P2-5/8-24UNEF 1 piece

Catalog number: SP-P2-5/8-24UNEF Features: ●The twisted grooves eject small, curled, continuous chips to the rear and prevent chip clogging, making it ideal for blind hole machining. ●Excellent cutting performance, making it ideal for threading sticky work materials and plastics. ●Taps bite easily. ●Can also be used for intermittent cutting of pilot holes with keyways. ●Blade strength is inferior to HT, so the HT shape is more suitable for high hardness materials. Applications: ●For blind hole machining. ●Work material: Low carbon steel, medium carbon steel, high carbon steel. Specifications: ● Precision: P2 ● Precision notation: P grade ● Nominal dimensions: UNEF5/8 ● Thread length (mm): 26 ● Total length (mm): 95 ● Shank diameter (mm): 12.5 ● Square shank section (mm): 10 ● Counterbore diameter (mm): 14.92 ● Number of threads: 24 ● Number of engaging threads: 2.5 threads ● Machined thread: Unified thread ● Surface treatment: Non-coated ● Number of grooves: 3 ● Shank length: 48 mm ● Length of square shank section: 13 mm Material/Finish: ● High-speed tool steel (HSS)
