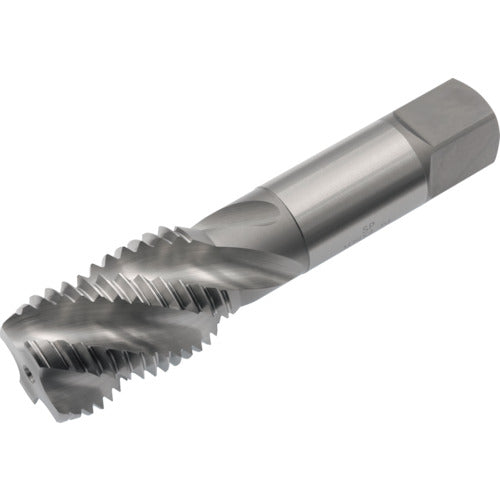

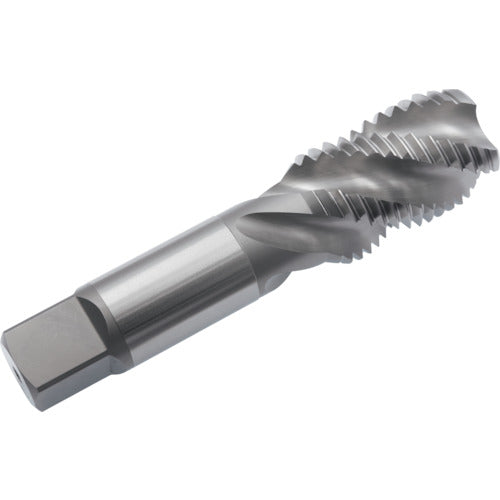

Yamawa Spiral Tap SP P3 M34X3 SP-P3-M34X3 1 piece

Catalog number: SP-P3-M34X3 Features: ●The grooves are twisted, so small curled chips are discharged backwards and chip clogging does not occur, making it ideal for blind hole processing. ●The sharp cutting edge makes it ideal for threading, especially sticky work materials and plastics. ●The tap bites easily. ●Intermittent cutting of pilot holes with keyways is also possible. ●The blade strength is inferior to HT, so the HT shape is more suitable for high hardness materials. Applications: ●For blind hole processing. ●Work material: Medium carbon steel. Specifications: ●Accuracy: P3 ●Accuracy notation: P grade ●Nominal size: M34 ●Pitch (mm): 3 ●Thread length (mm): 52 ●Total length (mm): 155 ●Shank diameter (mm): 28 ●Shank square section (mm): 21 ●Number of teeth: 2.5 teeth ●Machining thread: Metric thread ●Number of grooves: 4 ●Blind hole spiral tap Material/Finish: ●High speed tool steel (HSS)
