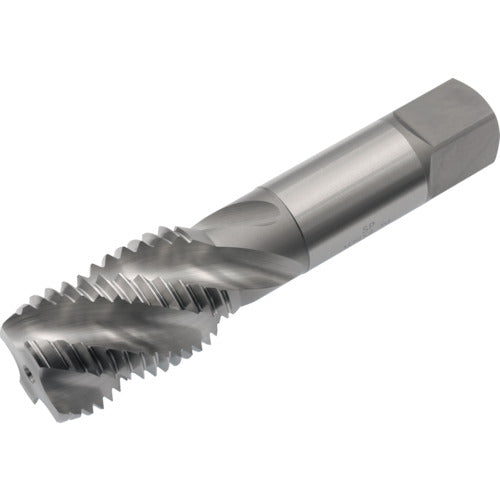

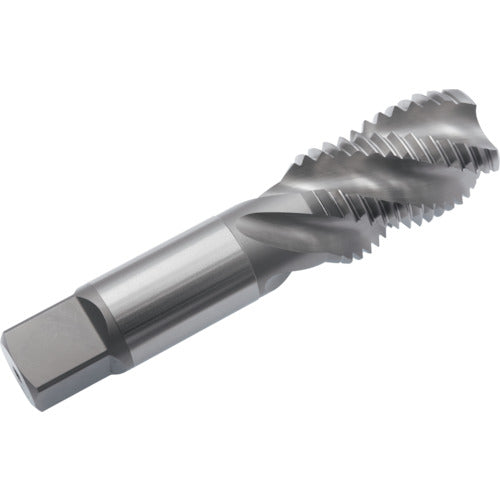

Yamawa Spiral Tap SP P5 M22X1.5 SP-P5-M22X1.5+40 1 piece

Catalog number: SP-P5-M22X1.5+40 Features: ●The groove is twisted, so small curled continuous chips are discharged backwards and chip clogging does not occur, making it ideal for blind hole machining. ●It has a sharp cutting edge, making it ideal for threading, especially sticky work materials and plastics. ●Tap is easy to bite into. ●Intermittent cutting of pilot holes with keyways is also possible. ●The blade strength is inferior to HT, so the HT shape is more suitable for high hardness materials. Applications: ●For blind hole machining. ●Work material: Medium carbon steel. Specifications: ● Precision: P5 ● Precision notation: P grade ● Nominal size: M22 ● Pitch (mm): 1.5 ● Thread length (mm): 33 ● Total length (mm): 115 ● Shank diameter (mm): 17 ● Shank square section (mm): 13 ● Counterbore diameter (mm): 20.6 ● Number of engaging threads: 2.5 threads ● Machined thread: Metric thread ● Number of grooves: 4 ● Spiral tap for blind holes Material/Finish: ● High-speed tool steel (HSS)
