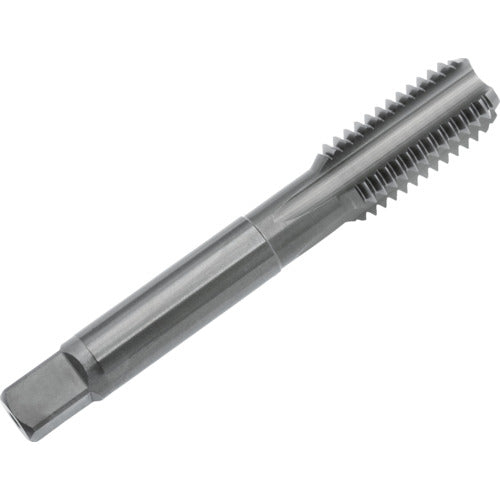

Yamawa Die Cast Hand Tap LA-HT P3 M8X1.25 1.5P LA-HT-M8X1.25-3 1 piece

Catalog number: LA-HT-M8X1.25-3 Features: ●Oversized taps that deal with the tendency of female threads to shrink, such as aluminum alloy die castings (ADC) and zinc alloy die castings (ZDC). Applications: ●Workpiece: Aluminum rolled materials, aluminum alloy castings, and zinc alloy castings. Specifications: ●Tip: Top ●Accuracy: P3 ●Accuracy notation: P class ●Nominal dimensions: M8 ●Pitch (mm): 1.25 ●Thread length (mm): 19 ●Total length (mm): 70 ●Shank diameter (mm): 6.2 ●Shank square section (mm): 5 ●Pit ​​hole diameter (mm): 6.85 ●Machined thread: Metric thread ●Surface treatment: Nitriding ●Number of grooves: 3 ●Number of engaging threads: 1.5 threads ●Number of engaging threads: 1.5 threads Material/Finish: ●High-speed tool steel (HSS)
