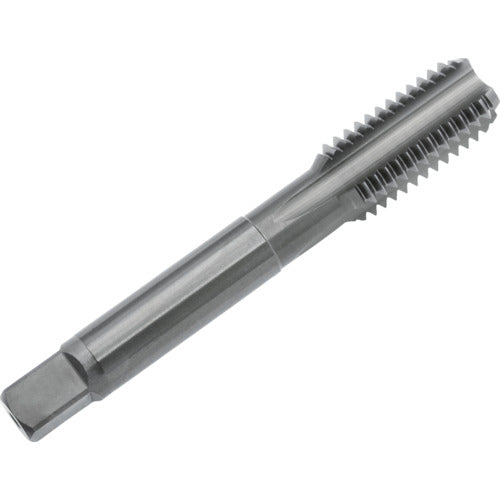

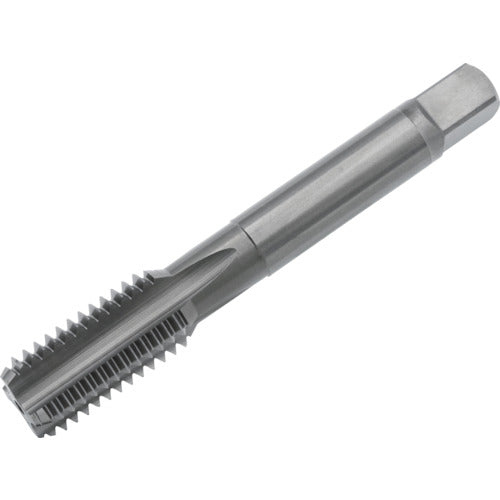

Yamawa Die Cast Hand Tap LA-HT P4 M12X1.25 1.5P LA-HT-P4-M12X1.25-1.5P 1 piece

Catalog number: LA-HT-P4-M12X1.25-1.5P Features: ●Oversized taps that deal with the tendency of female threads to shrink, such as aluminum alloy die castings (ADC) and zinc alloy die castings (ZDC). Applications: ●Workpiece: Aluminum rolled materials, aluminum alloy castings, and zinc alloy castings. Specifications: ●Tip: Top ●Accuracy: P4 ●Accuracy notation: P class ●Nominal dimensions: M12 ●Pitch (mm): 1.25 ●Thread length (mm): 26 ●Total length (mm): 82 ●Shank diameter (mm): 8.5 ●Shank square section (mm): 6.5 ●Pilot hole diameter (mm): 10.85 ●Machined thread: Metric thread ●Surface treatment: Nitriding ●Number of grooves: 4 ●Number of engagement teeth: 1.5 teeth Material/Finish: ●High-speed tool steel (HSS)
