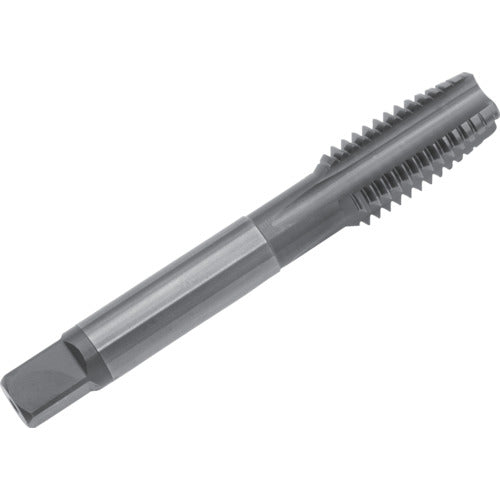

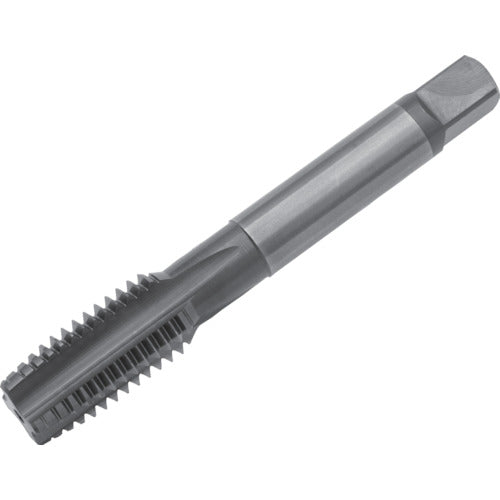

Yamawa Die Cast Hand Tap LA-HT P4 M18X1.5 5P LA-HT-P4-M18X1.5-5P 1 piece

Catalog number: LA-HT-P4-M18X1.5-5P Features: ●Oversized taps that deal with the tendency of female threads to shrink, such as aluminum alloy die castings (ADC) and zinc alloy die castings (ZDC). Applications: ●Workpiece: Aluminum rolled materials, aluminum alloy castings, and zinc alloy castings. Specifications: ●Tip: Medium ●Accuracy: P4 ●Accuracy notation: P class ●Nominal dimensions: M18 ●Pitch (mm): 1.5 ●Thread length (mm): 33 ●Total length (mm): 100 ●Shank diameter (mm): 14 ●Shank square section (mm): 11 ●Pit ​​hole diameter (mm): 16.60 ●Machined thread: Metric thread ●Surface treatment: Nitriding ●Number of grooves: 4 ●Number of engagement teeth: 5 teeth Material/Finish: ●High-speed tool steel (HSS)
