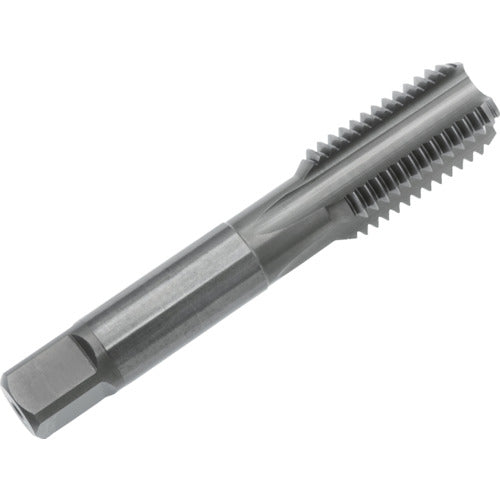

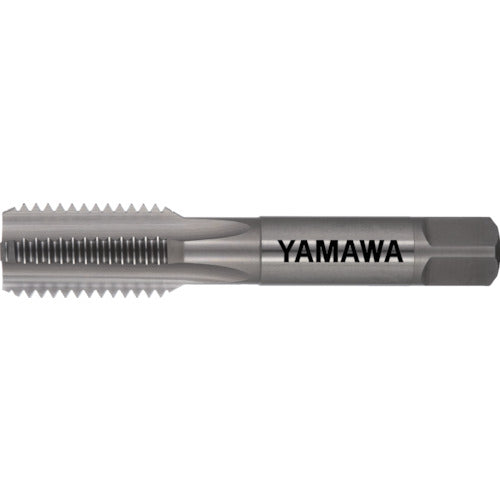

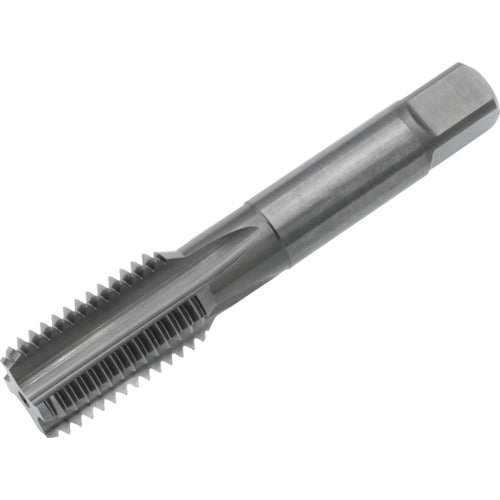

Yamawa Die Cast Hand Tap LA-HT P4 M20X1.5 1.5P LA-HT-P4-M20X1.5-1.5P 1 piece

Catalog number: LA-HT-P4-M20X1.5-1.5P Features: ●Oversized taps that deal with the tendency of female threads to shrink, such as aluminum alloy die castings (ADC) and zinc alloy die castings (ZDC). Applications: ●Workpiece: Aluminum rolled materials, aluminum alloy castings, and zinc alloy castings. Specifications: ●Tip: Top ●Accuracy: P4 ●Accuracy notation: P class ●Nominal dimensions: M20 ●Pitch (mm): 1.5 ●Thread length (mm): 33 ●Total length (mm): 105 ●Shank diameter (mm): 15 ●Shank square section (mm): 12 ●Pit ​​hole diameter (mm): 18.60 ●Machined thread: Metric thread ●Surface treatment: Nitriding ●Number of grooves: 4 grooves ●Number of engaging threads: 1.5 threads ●Number of engaging threads: 1.5 threads Material/Finish: ●High-speed tool steel (HSS)
