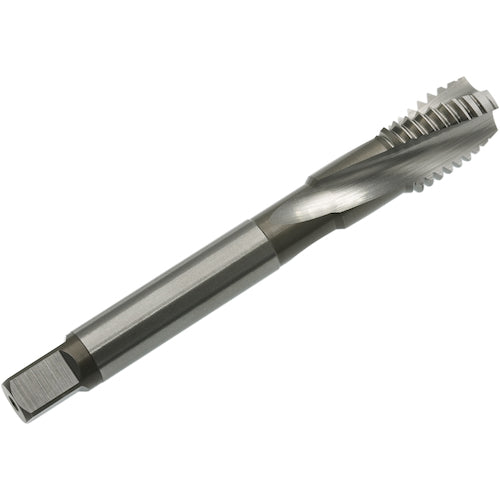

Yamawa Titanium Alloy Spiral Tap ZET-B P3 5/16-18UNC ZET-B-P3-5/16-18UNC 1 piece

Catalog number: ZET-B-P3-5/16-18UNC Features: ●The tap material is high-grade powder high-speed steel with excellent heat and wear resistance. ●The threads are re-threaded taking into consideration shrinkage and cutting heat. ●An appropriate groove shape for titanium alloys is used to ensure smooth chip removal. ●Surface treatment is performed taking into consideration wear resistance. ●Moderate oversizing is used to take into consideration the shrinkage of the female thread. Applications: ●For blind hole machining. ●Workpiece material: Titanium alloy. Specifications: ●Accuracy: P3 ●Accuracy notation: P class ●Nominal dimensions: UNC5/16 ●Thread length (mm): 12 ●Total length (mm): 70 ●Shank diameter (mm): 6.2 ●Shank square section (mm): 5 ●Pilot hole diameter (mm): 6.65 ●Number of threads: 18 ●Number of engagement threads: 3 ●Machined thread: Unified thread ●Surface treatment: Nitriding treatment ●Shank length (mm): 36 ●Square section length (mm): 8 ●Number of grooves: 3 ●For use with fully synchronized lead feeders only. Material/Finish: ●High-speed tool steel: Powdered high speed steel (HSS-P)
